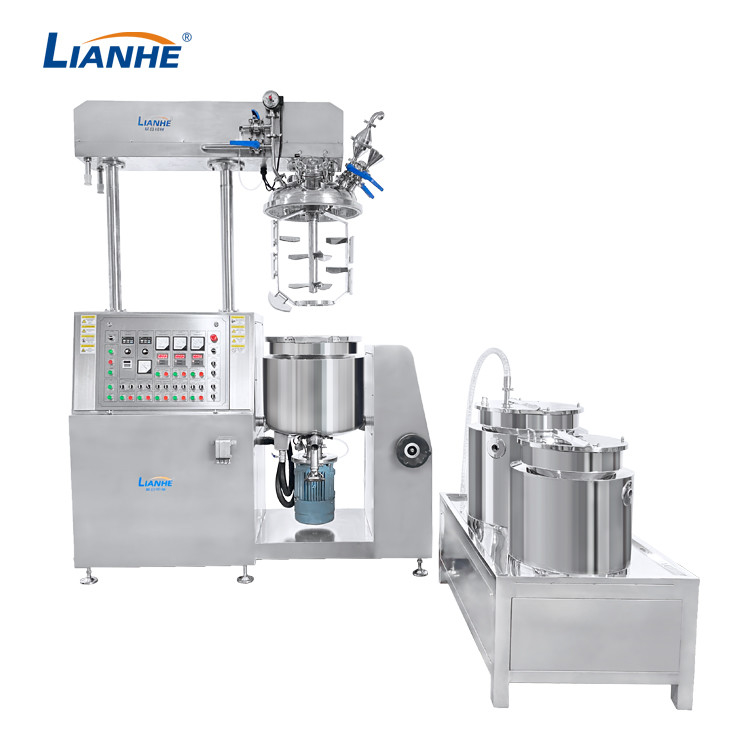

4KW Practical Vacuum Emulsifier Mixer Machine For Pharmaceutical
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-VME 100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, L/C, D/A |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 5L-5000L (can Be Customized) | Material Contact Parts: | SUS316L |
|---|---|---|---|
| Frame: | SUS304 | Mixing Speed: | 0-65 Rpm |
| Homogenizing Speed: | 0-3600 Rpm | Applicable Industries: | Cosmetic, Pharmaceutical, Food |
| High Light: | 4KW Vacuum Emulsifier Mixer,Pharmaceutical Vacuum Emulsifier Mixer,Practical Pharmaceutical Mixer Machine |
||
Product Description
100L Vacuum Emulsifier Mixer Cosmetic Lotion Facial Cream Making Machine
Product Description:
100L hydraulic lift homogeneous emulsifier, main pot 100L, water phase pot 100L, oil phase pot 50L.

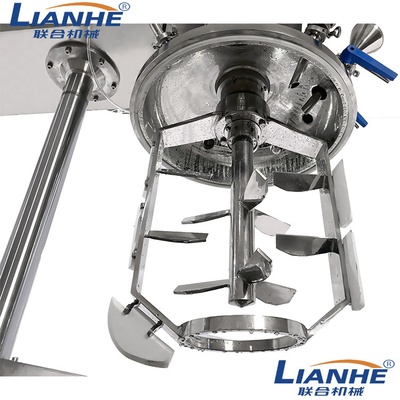

The vacuum emulsifier homogenizer machine is composed of mixing, homogenizing, dispersing, emulsifying and Plc or button control system and also be used with oil, water phase, vacuum, heating/cooling system, ect. Materials go through the upper tank stirring, PTFE scraper will sweep the wall sticky materials, and then after the blades and rotary blades cut, compressed, The materials is cut in the high shear condition, due to the emulsification tank in a vacuum condition, the bubbles generated in the mixing process is promptly removed.
Product Composition:
The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system (optional), electric control system (PLC is optional), operation platform, etc.
Product parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||

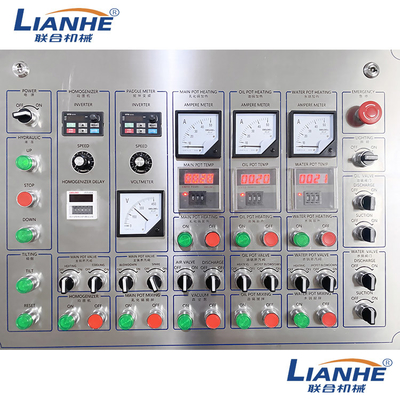

Control System:
Operators can manage the equipment by pressing buttons on the control panel, which include:
• Lighting Control System
• Main pot’s stirring operations
• Main pot’s uniform functioning
• Vacuum system’s operation control
• Water and oil pot’s mixing operations
• Heating process for water and oil pots
Product Advantage:
The vacuum emulsifying mixer machine produces cream and lotion with a fine, smooth, glossy form and a highly stable essential material. During the production process, operators must have a wide range of skills and abilities to produce the best cream. The classic way of making cream is to heat the oil and water at a temperature, mixing, packing materials, emulsifying, and cooling. On the other hand, the vacuum emulsifying mixer machine's cream is bubble-free, supple, smooth, and has a long life shelf.
Our Service:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
