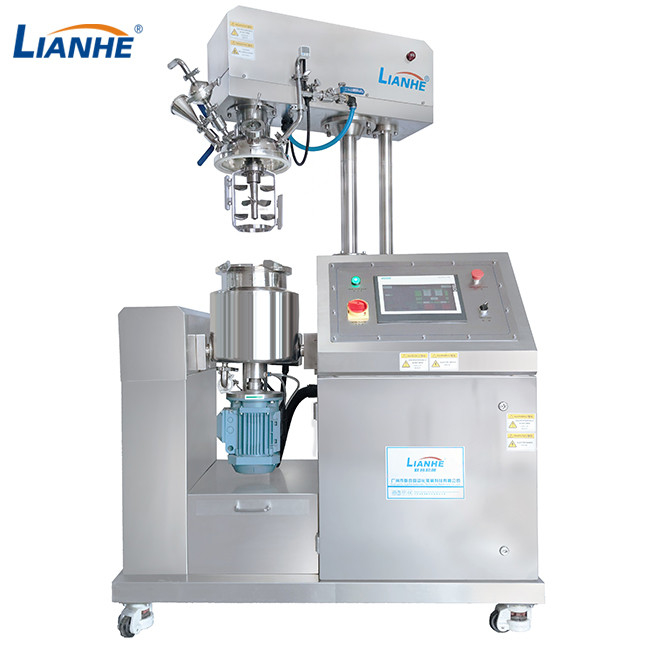

PLC 5L Body Cream Making Machine , Steam Heating Vacuum Emulsifying Mixer
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-VME5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, L/C, D/A |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 5L - 5000L | Material Contact Parts: | SUS 316L |
|---|---|---|---|
| Frame: | SUS304 | Stirring Speed: | 0-65 Rpm |
| Homogenizing Speed: | 0-3600 Rpm | Heating Method: | Steam Or Electric (Optional) |
| Heating Temperature: | 0-100 ℃ | Homogenizer: | Top, Bottom Or Circulation Homogenizer |
| High Light: | PLC Body Cream Making Machine,5L Body Cream Making Machine,Steam Vacuum Emulsifying Mixer |
||
Product Description
5L PLC Control Vacuum Emulsifying Mixer Cream Sunscreen Making Machine
Product Description:
The mixing system of the machine is designed to produce creams and liquids of different viscosities. The speed can also be adjusted according to customer preferences. The vacuum system will ensure successful operation by preventing the formation of bubbles in the material.
Product Composition:

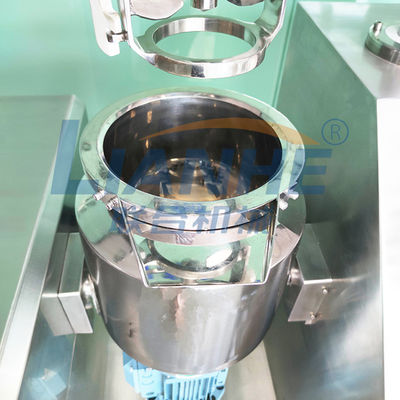

The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system (optional), electric control system (PLC is optional), operation platform, etc.
Product Structure:

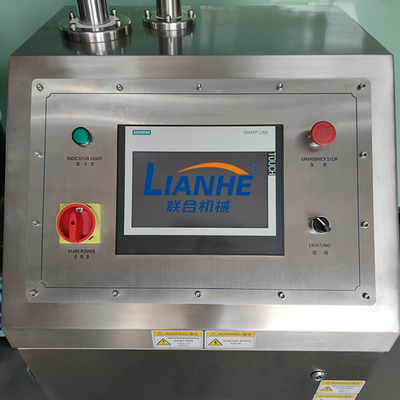

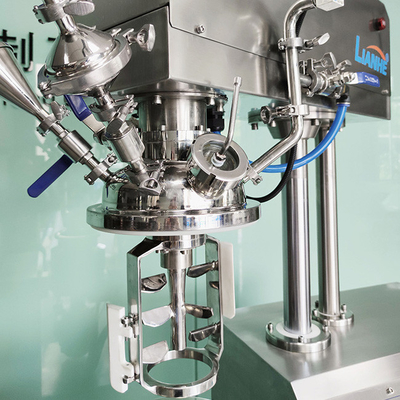

The vacuum emulsifying mixer consists of vacuum-resistant vessel with jacket for heating and cooling. Equipped with high speed homogenizer, scraping agitator, vacuum pump, and hydraulic pump for lifting, heating & cooling system. A vacuum emulsifying mixer comprises many parts, including electrical control system, a vacuum device, a heating, and cooling system, a temperature control system, and pots for oil, emulsifying, and water. The control panel is where all the mixer's operations carry out. The controls include the lighting power system, the main pot's constant functioning, control of the main pot's stirring operation, access to the vacuum system's operation, and the water and oil pot's mixing and heating process.
Product parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||
Product Specifications:
• Capacity: 5L, 10L, 15L, 25L, 30L, 50L, 100L, 150L, 200L, 250L, 350L, 500L, 650L, 1000L, 1500L, 2000L,3000L,5000L
• Agitator type: homogenizer (high-speed agitator), sweep wall agitator (low-speed agitator)
• Certificate: CE
• one year warranty
• Supply capacity: 50 units/month
Our Service:
As the vacuum emulsifying mixers manufacturer, we customize machines to meet customer needs. We can send our skilled engineers to the customer’s factory to install the machine correctly. We also provide a one-year warranty for all our machines and after-sales service.
