Button Control Homogenizing Vacuum Emulsifier Ketchup Mayonnaise Making Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-VME |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 25 Sets per Month |
|
Detail Information |
|||
| Material: | 304 And 316L Stainless Steel | Capacity: | 5 Liter To 5000 Liter |
|---|---|---|---|
| Voltage: | 220V / 380V / 480V Customized | Core Components: | Motor, Pump, PLC, Other, Engine |
| Motor Brand: | SIEMENS Or ABB | Dimension(L*W*H): | Various Sizes |
| Highlight: | Button Control Homogenizing Vacuum Emulsifier,316L Stainless Steel Homogenizing Vacuum Emulsifier |
||
Product Description
Button Control Homogenizing Vacuum Emulsifier Ketchup Mayonnaise Making Machine
Product Description of Vacuum Emulsifying Mixer:

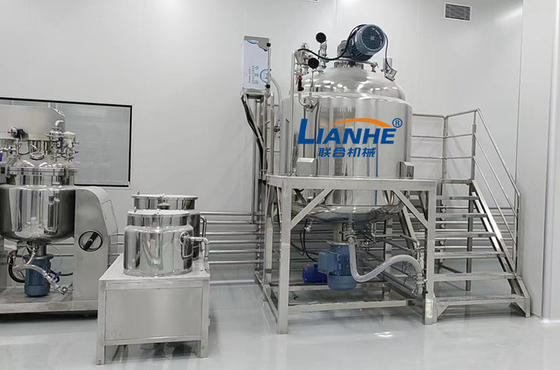

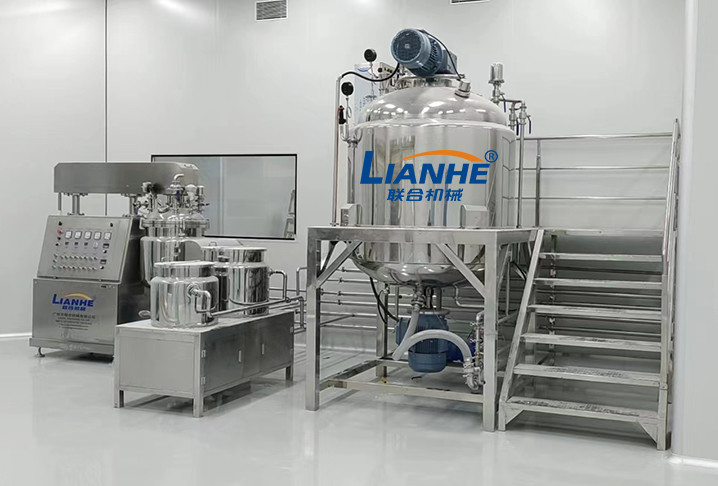

This 3000L Fixed Type vacuum emulsifying mixer equipped with load cell system (Mettler Toledo). The amount of feeding and discharging can be automatically controlled by PLC touch screen system.
It has a large processing capacity in continuous work. It is suitable for continuous processing of single-variety products. The mixing system of the machine is designed to produce creams and liquids of different viscosities. The speed can also be adjusted according to customer preferences. The vacuum system will ensure successful operation by preventing the formation of bubbles in the material.
Product Parameters of Vacuum Emulsifying Mixer:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||
PERFORMANCES AND FEATURES:
1. Stepless speed adjustment is adopted during the blending so that the speed of blending line can berandomly adiusted within the range of 0-80m/min to meet different technological requirement.
2, The advanced homogenizer adopts technology from USA ROSS Company, featured by unique structure and prominent efficency.
3. The parts that contact the materials are all made of imported stainless steel, The interior surface of the vessel is subjectedto mirror polishing 300EMSH(sanitary level), which is in accordance with sanitary requirement.
4. The whole process including vacuum material s ketchup machineuction and vacuum defoaming can be completed under the vacuum
status without cellular contamination, and thus, prolonging shelf life of products.
5. Beautiful and decent appearance, which adopts special polishing technology so that it is shining like a miror displaying luxurious character.
Main Features of Vacuum Emulsifying Mixer:
This unit has such features as simple operation, stable performance, good homogenization, high production efficiency, convenient cleaning, reasonable structure, small floor space, and high automatization etc.
- The vacuum emulsifiers produced by our company include many varieties.The homogenizing systems include upper homogenization,lower homogenization,internal and external circulating homogenization.The mixing systems include single-way mixing,double-way mixing and helical mixing.The lifting systems include single-cylinder lifting and double-cylinder lifting.Various high quality products can be customized according to customers' requirements.
- The triple mixing adopts the imported frequency converter for speed adjustment,which can meet different technological demands.
- The homogenizing structure made through German technology adopts the imported double-end mechanical seal effect.The maximum emulsifying rotation speed can reach 4,200rpm and the highest shearing fineness can reach 0.2-5um.
- The vacuum defoaming can make the materials meet the requirement of being aseptic.The vacuum material sucking is adopted,and especially for the powder materials,vacuum sucking can avoid dust.
- The emulsifying pot lid can adopt lifting system,easy to clean and the cleaning effect is more obvious,the emulsifying pot can adopt tilt discharge.
- The pot body is welded by imported three-layer stainless steel plate.The tank body and the pipes adopt mirror polishing,which fully conforms to GMP requirements.
- According to technological requirements,the tank body can heat and cool the materials.The heating modes mainly include steam heating and electric heating.
- To ensure the control of the whole machine is more stable,the electric appliances adopt imported configurations,so as to fully meet the international standards.
The vacuum emulsifying mixer are mainly used to make high viscosity emulsions, especially creams, ointments and lotions. The functions of heating, cooling, dissolving, emulsification and vacuum defoaming can be completed at one time with an emulsifier; the raw materials can be fully pulverized, mixed, emulsified and homogenized to increase the gloss and stability of the product.
Our Service:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
