300L Fixed Cover Type Heating Mixing Tank Movable Button Control
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | TUV, CE, SGS, GMP |
| Model Number: | PMC-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 30 Working Days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Tank Capacity: | 300L (can Be Customized From 50L To 5000L) | Tank Structure: | Jacketed Design (3 Layers) |
|---|---|---|---|
| Heating System: | Electric Heating (steam Heating Optional) | Mixing Speed: | 0-65RPM |
| Tank Material: | SUS316L & 304 | Control System: | Button Control |
| High Light: | 300L Heating Mixing Tank,Heating Mixing Tank Button Control |
||
Product Description

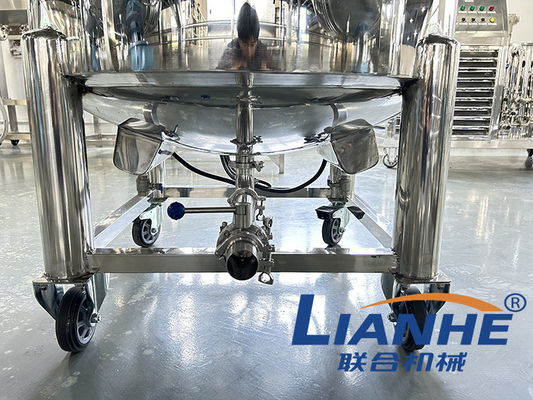

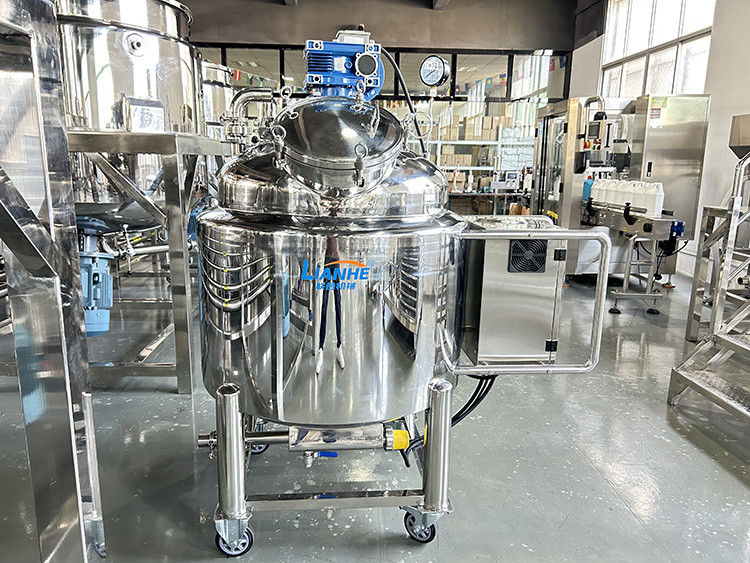

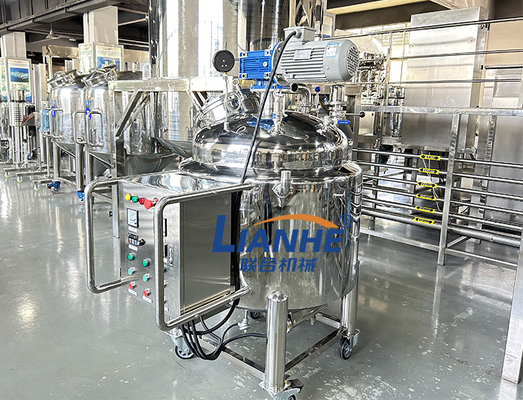

300L Fixed Cover Type Mixing And Heating Tank with Movable Design
Product Description:
Liquid wash homogenizer mxier is mainly suitable for manufacturing liquid products. Integrating mixing, dispersion, heating, cooling and other functions, we can customize corresponding equipment for customers in different industries to improve production quality. Suitable for industries such as pharmaceuticals, chemicals, cosmetics, daily chemicals, and food.
Technical Parameter of Homogenizer Mixer:
| Model | Capacity (L) | Agitator | Homiogenizer | Heating system | |||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | Electric heating (kw) | Steam heating (Mpa) | ||
| PMC-50 | 50 | 0.75 | 0-65 | 3 | 3000 | 6 | Steam heating energy conservation and environmental protection, selected according to need |
| PMC-100 | 100 | 1.5 | 0-65 | 4 | 3000 | 9 | |
| PMC-150 | 150 | 1.5 | 0-65 | 4 | 3000 | 12 | |
| PMC-200 | 200 | 1.5 | 0-65 | 4 | 3000 | 12 | |
| PMC-300 | 300 | 1.5 | 0-65 | 5.5 | 3000 | 18 | |
| PMC-500 | 500 | 2.2 | 0-65 | 7.5 | 3000 | 27 | |
| PMC-1000 | 1000 | 4 | 0-65 | 11 | 3000 | 36 | |
| PMC-1500 | 1500 | 5.5 | 0-65 | 15 | 3000 | 45 | |
| PMC-2000 | 2000 | 7.5 | 0-65 | 15 | 3000 | recommend steam heating | |
| PMC-3000 | 3000 | 11 | 0-65 | 15 | 3000 | ||
| PMC-5000 | 5000 | 11 | 0-65 | 22 | 3000 | ||
| The parameters for reference only, all the machines can be customized accordingly. | |||||||
Application Product:
1.Continuous working processing quantity is big and it can produce material circularly and homogenized and also can put positive pressure to produce material on main boiler which is convenient and fast.
2.The advanced homogenizer adopts technology from Germany, featured by unique structure and prominent efficiency.
3.Easy to operate, better emulsifying effect.
4.Beautiful and decent appearence, which adopts special polishing technology so that it is shining like a mirror, displaying luxurious charcter.
5.The parts that contact the materials are all made of imported stainless steel. The interior surfaced of the vessel is subjected to mirror polishing 300 EMSH, which is in accordance with sanitary requirements.
Product Details:

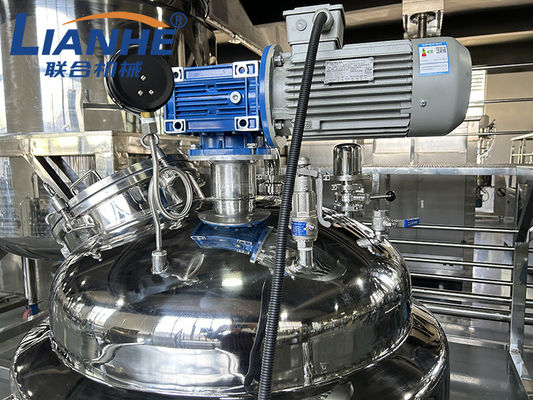

1. Motor brand: Siemens or ABB
2. Material: SUS304&316L
3. Stirring method: wall-mounted stirring, with Teflon scraper
4. Control method: button control
5. Electrical components: Schneider, Siemens and other international brands
Service:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
