ABB 2000L Cosmetic Homogenizer Mixer , Platform Hand Sanitizer Mixing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-PMC 2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 50-6000L (Customized) | Material: | SUS304/SUS316(Material Contact Part) |
|---|---|---|---|
| Power Supply: | 220V/380V/3phase (Customized) | Mixing Speed: | 0-65 Rpm |
| Homogenizing Speed: | 3000 Rpm | Mixing Motor: | SIEMENS Or ABB |
| Homogenizer Motor: | SIEMENS Or ABB | Key Selling Points: | Low Maintenance Cost |
| High Light: | ABB Cosmetic Homogenizer Mixer,2000L Cosmetic Homogenizer Mixer,Platform Hand Sanitizer Mixing Equipment |
||
Product Description
2000L Heating Tank Liquid Wash Homogenizer Emulsifier Mixer With Platform
Product Description:
This machine is widely applied in chemical, pharmaceutical, beverage, food and process industries. Our high speed mixing tank can make according to customer's requirement for the structure, single-layer, double-layer(jacket) and three-layer(insulation layer) or make limpet coil(inside or external ) to heating and cold.Also we design the different type agitator for the different raw material ,the capacity we can make from 50L to 5000L.
Product Application:
This machine is applicable in cosmetic, daily chemical, food, pharmaceutical, agricultural industries such as shampoo, hand sanitizer, liquid soap, detergent, disinfectant, beverage, fruit juice, mayonnaise, body cream, pesticide, fertilizer, chemical liquid, etc. products.
Product Parameters:
|
Model |
Capacity (L) |
Agitator |
Homiogenizer |
Heating system |
|||
|
power (kw) |
speed (rpm) |
power (kw) |
speed (rpm) |
Electric heating (kw) |
Steam heating (Mpa) |
||
|
PMC-50 |
50 |
0.75 |
0-65 |
3 |
3000 |
6 |
Steam heating energy conservation and environmental protection, selected according to need |
|
PMC-100 |
100 |
1.5 |
0-65 |
4 |
3000 |
9 |
|
|
PMC-150 |
150 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-200 |
200 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-300 |
300 |
1.5 |
0-65 |
5.5 |
3000 |
18 |
|
|
PMC-500 |
500 |
2.2 |
0-65 |
7.5 |
3000 |
27 |
|
|
PMC-1000 |
1000 |
4 |
0-65 |
11 |
3000 |
36 |
|
|
PMC-1500 |
1500 |
5.5 |
0-65 |
15 |
3000 |
45 |
|
|
PMC-2000 |
2000 |
7.5 |
0-65 |
15 |
3000 |
recommend steam heating |
|
|
PMC-3000 |
3000 |
11 |
0-65 |
15 |
3000 |
||
|
PMC-5000 |
5000 |
11 |
0-65 |
22 |
3000 |
||
|
The parameters for reference only, all the machines can be customized accordingly. |
|||||||
Product Features:
1. Main Tank:
* Capacity: Fully Volume: 2500L, Working Volume: 2000L
2. Lid Parts: Half open hinged lid
* GMP hygiene standards, made for SUS304(Can do cusotmized), Can open the lid at any time during the making products process, easy to cleaning
3. Water circulation: Mechanial seal cooling system. Protect the Homogenizer to use longer
4. Agitator Motor:
* SIEMENS motor and reducer (can change to ABB motor)
* Speed: 0-65rpm

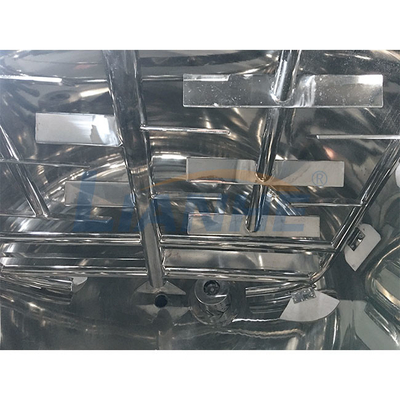

5. Agitator:
* Mixing part: Frame oar scraping blender with one fixed oar.
* Stirrer paddle: Stir up and down, mixing more evenly.
* Wall Scraper: PTFE material, Scraping off the materials that stick on pot wall, to make all materials mixing more evenly.
6. Bottom Homgenizer (can choose upper homogenizer):
* SIEMENS motor
* Speed: 3000rpm (Inverter can be added)
* Homogenizer part: Rotor and stator adopts wire-cutting finish machining high shearing homogenizer, smooth emulsion.
7. Discharge part: Bottom discharge, dished bottom design and bottom flat valve to make discharge completely.

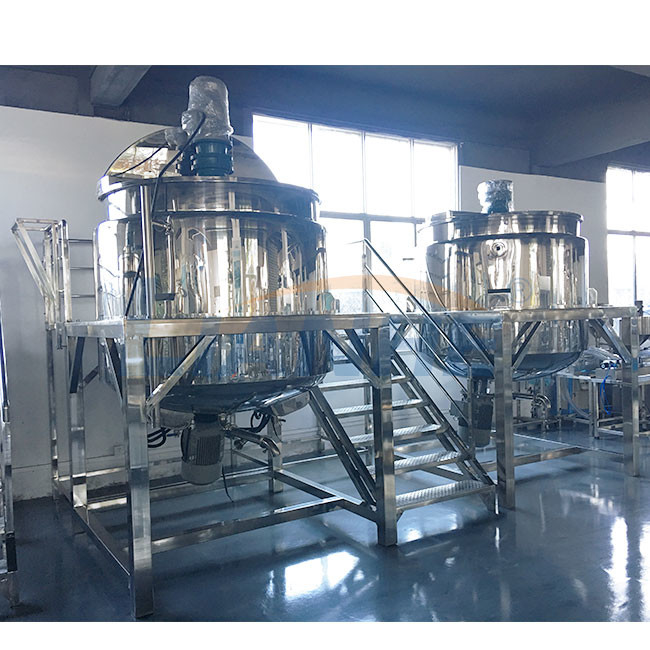

8. Electric control system & Platform
* Shell material: SUS304
* Standard Configuration: Instrument, button, appliance components
* All SUS and equipped with anti-skid plate
Product Details:
Our Servers:
As a professional mixing equipment manufacturer, we customize machines to meet customer needs. We can send our skilled engineers to the customer’s factory to install the machine correctly. We also provide a one-year warranty for all our machines and after-sales service.
