3 Layers Lotion Homogenizer Emulsifier Mixer With Circulation System
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE, SGS, TUV |
| Model Number: | PMC-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 30 Working Days |
| Payment Terms: | T/T, D/A, L/C |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Available Capacity: | 30L To 6000L | Tank Structure: | 3 Layers Of Steel, 2 Jacket |
|---|---|---|---|
| Material: | SUS316L/SUS304/SUS304 | Heating Method: | Electric Heating / Steam Heating |
| Cooling: | Water Cooling | Mixing Method: | One Way Or Two Way Mixing With Teflon Scraper |
| Mixing Speed: | 0-65RPM | Homogenizer Speed: | 3000RPM |
| High Light: | 3 Layers Homogenizer Emulsifier Mixer,Lotion Homogenizer Emulsifier Mixer,Circulation System Mixer Body Lotion |
||
Product Description
High Shear Lotion Homogenizer Emulsifier Mixer With Circulation System
Brief Introduction:
The High Shear Lotion Homogenizer Emulsifier Mixer With Circulation System is for producing liquid washing products like bath shower, dish washing, hand washing, lotion, liquid soap, detergent, shampoo, hand sanitizer gel, wax, sauce, juice, ketchup, etc.
Complex wall scraping blending paddle is suitable to every kind of complicated recipe and achieve optimizing result;
Polytetrafluoroethylene scraping board cater to body of blending groove and scrape out viscosity material on the wall of the tank;
Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick product; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
Finished products can be discharged by bottom valve or match a transfer pump, such as pneumatic diaphragm pump, rotary pump, screw pump, etc.

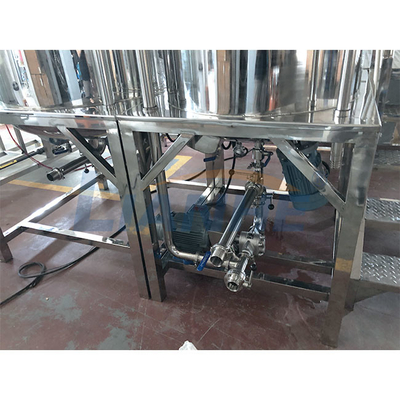

It is also available to build a circulation system with the pump, to make the mixing process more even.
Technical Parameter:
| Model | Capacity (L) | Agitator | Homiogenizer | Heating system | |||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | Electric heating (kw) | Steam heating (Mpa) | ||
| PMC-50 | 50 | 0.75 | 0-65 | 3 | 3000 | 6 | Steam heating energy conservation and environmental protection, selected according to need |
| PMC-100 | 100 | 1.5 | 0-65 | 4 | 3000 | 9 | |
| PMC-150 | 150 | 1.5 | 0-65 | 4 | 3000 | 12 | |
| PMC-200 | 200 | 1.5 | 0-65 | 4 | 3000 | 12 | |
| PMC-300 | 300 | 1.5 | 0-65 | 5.5 | 3000 | 18 | |
| PMC-500 | 500 | 2.2 | 0-65 | 7.5 | 3000 | 27 | |
| PMC-1000 | 1000 | 4 | 0-65 | 11 | 3000 | 36 | |
| PMC-1500 | 1500 | 5.5 | 0-65 | 15 | 3000 | 45 | |
| PMC-2000 | 2000 | 7.5 | 0-65 | 15 | 3000 | recommend steam heating | |
| PMC-3000 | 3000 | 11 | 0-65 | 15 | 3000 | ||
| PMC-5000 | 5000 | 11 | 0-65 | 22 | 3000 | ||
| The parameters for reference only, all the machines can be customized accordingly. | |||||||
Application Product:
- Daily Chemical: Liquid soap, shampoo, hand sanitizer, liquid detergent, fabric softener, etc.
- Skin & Hair Care: Body lotion, facial cream, sunscree cream, serum, hair dye, hair conditioner, etc.
- Pharmaceutical: Ointment, erythromycin eye ointment, Compound Dexamethasone Acetate, etc.
- Food: Mayonnaise, ketchup, cheese, sauce, paste, coconut oil, juice, etc.
Features:
- The all-around wall Teflon scraping mixing adopts the frequency inverter for speed adjustment, so it can be adjusted to make different products with different manufacturing requirements.
- The diversified high-speed homogenizer can powerfully mix solid, oil and liquid raw materials and can rapidly dissolve many indissoluble materials such as AES, AESA, LSA,etc.
- The pot body is welded by SUS316 three-layer stainless steel plate.the tank body and the pipes adopt 5 times mirror polishing, which fully conforms to GMP standard requirements.

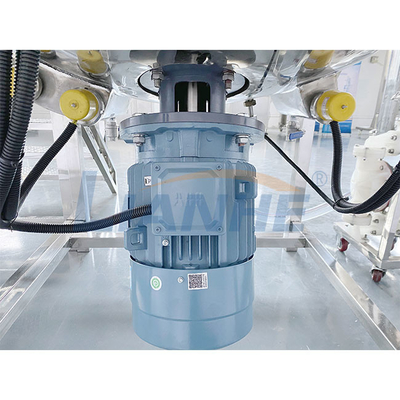

- The motor for homogenizer and mixing paddle, we only use Siemens or ABB, with higher quality, better stability and longer service life.
- All main parts of the machine are adopted with international brands, such as Delta, Schneider, Siemens, Omron, etc.
Service:
-
Warranty: One year since the date of installation. If there is any wearing parts be within the warranty and isn’t caused by un-proper operation, Lianhe will offer new parts for free.
-
Inspection: Buyer could visit our factory for site inspection, we could also send some machine testing videos to buyer if buyer couldn't come.
-
Machine Installation or Fixing: On site installation is available, Lianhe can send 1-2 technicians to buyer's factory for installation, testing and training. We can also provide online installation guidance instead, and provide you some 3D videos, instruction videos if buyer prefer installing by themselves.
-
Lifetime maintenance assistance and online video call service.
