Stainless Steel 304 Automatic Cap Screwing Machine Bottle Cap Sealer
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Applicable Cap: | Wide Range Of Applications | Production Capacity: | 30-50 Caps/Min |
|---|---|---|---|
| Package Material: | Plastic, Metal, Glass, Etc | Key Selling Point: | Wide Application |
| Driven Type: | Electric + Pneumatic | Material: | Stainless Steel 304 |
| Condition: | New | Warranty: | 1 Year |
| High Light: | Automatic Cap Screwing Machine,Stainless Steel 304 Cap Screwing Machine |
||
Product Description
Automatic Cap Screwing Machine, Bottle Capping Sealing Machine
Product description:
This automatic capping machine adopts PLC and human machine interface technology, smarter and easier to operate. Our capping machine integrates electric and pneumatic functions into one, with reasonable design, stable performance, and steady operation without noise, servo motor control to the capping wheel. With easy adjustment design, one set machine can serve for various caps design such as flip-top cap capping, pump-head cap capping, trigger cap capping, jars cap capping or any other screw type cap.
The product is mainly appropriate to seal plastic bottles and glass bottles with advanced product design, reasonable structure and easy and simple operation. It is necessary and ideal packaging equipment.
The product conforms to regulations of national standards, departmental standards and enterprise standards and can be allowed to leave the factory after qualification of strict inspection and test.
Product application:
This machine is used for automatic capping for plastic bottles and glass bottles in cosmetic, food, beverage, chemical industry and medicine industry. It can be applied to a variety of bottle types with high production efficiency. Suitable for bottles or jars, pump head, flip-top head, jars cap, trigger cap, etc.
Product parameters:
| Technical Parameters | |
| Capping speed | 30-50 bottles per minute |
| Applicable cap | Flip-top type, pump-head type, trigger type, dropper type, and all other screw type cap |
| Capping form | 4 wheels clamp screw the cap |
| Material | Stainless steel 304 |
| Capping motor | 220W motor |
| Air Pressure | 0.6-0.8 Mpa |
| Cap feeding | Manually or automatically selectable |
| Voltage | Single phase voltage, customized according to your request |
Product advantages:
- PLC Control System: Imported brands for PLC touch screen control system, high class appearance, easier and faster for operation.
- Anti-scratch Capping Wheel: 4 clamp capping wheel, silica gel material prevents scratches on the caps while working.
- Automatic Cap Feeding System (optional): Can equip with automatic cap feeding system, save manpower. Customize according to different cap design.
- Capping Motor: Motor controls capping wheel, ensure the stable performance and high working accuracy.
- Easy Adjustment System: With screw handles and clamping conveyor adjustment, easily to adjust the machine when change different bottles or different caps.One set machine can fit different shapes of bottles and caps.
- Wide Application: Machine with easy adjustment design for wide application, one set machine can serve various shapes of bottles and caps, such as jars, bottles; and flip-top caps, trigger caps, pump head caps, etc.
Product Features:
1.The working height can be adjusted by the rotary knob, suitable bottle height is 60-270mm
2. Designed for various shapes of bottle caps,like smoke oil bottles, spray bottles, beverage bottle caps. It will press the bottle caps and tight it automatically Improve working efficiency greatly.
3. This machine is with electric eyes, can prevent from missing bottles, reduce the working error,the sensitivity of the electric eye can be adjusted by the black machine part during working.
4. With conveyor, this machine can transfer bottles automatically, save labor, reduce the production process and improve the working accuracy.
5. Equipped with powerful motor, the main motors and the conveyor motor are separately, ensure that the machine can work stably and safely.
6. The barometer can be used to watch the air pressure in real time.This machine should work with air compressor ,customers need to buy it separately.If you need it, please contact us.
Product details:

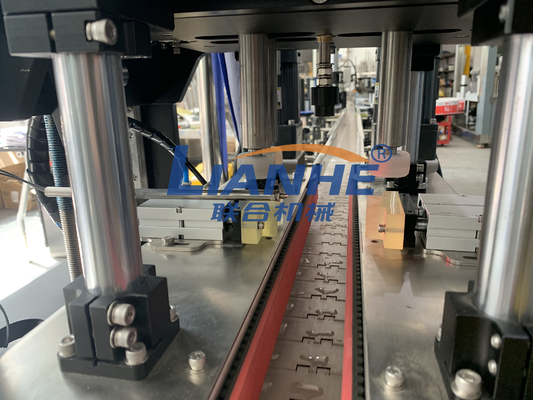

1. 4 wheels screwing capping head, its capping height and capping width is adjustable to suit your different caps diameter.
2. SIEMENS PLC touch screen control, high class appearance, stable performance.
3. Automatic cap feeding system can be added if you need.
