ISO Antirust Automatic Bottle Capper , PLC Capping Machine For Bottles
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Application: | Wide Range Of Applications | Production Capacity: | 30-50 Caps/Min |
|---|---|---|---|
| Control: | PLC System | Machine Type: | Four-wheel Clamping |
| Condition: | New | Warranty: | 1 Year |
| High Light: | ISO Automatic Bottle Capper,Antirust Automatic Bottle Capper,PLC Capping Machine For Bottles |
||
Product Description
Automatic Plastic / Glass Bottle Capping Machine PLC Control
Product description:
This automatic capping machine adopts PLC and human machine interface technology, smarter and easier to operate. Our capping machine integrates electric and pneumatic functions into one, with reasonable design, stable performance, and steady operation without noise, servo motor control to the capping wheel. With easy adjustment design, one set machine can serve for various caps design such as flip-top cap capping, pump-head cap capping, trigger cap capping, jars cap capping or any other screw type cap.
Product application:
Product parameters:
| Technical Parameters | |
| Capping speed | 30-50 bottles per minute |
| Applicable cap | Flip-top type, pump-head type, trigger type, dropper type, and all other screw type cap |
| Capping form | 4 wheels clamp screw the cap |
| Material | Stainless steel 304 |
| Capping motor | 220W motor |
| Air Pressure | 0.6-0.8 Mpa |
| Cap feeding | Manually or automatically selectable |
| Voltage | Single phase voltage, customized according to your request |
Product advantages:
- PLC Control System: Imported brands for PLC touch screen control system, high class appearance, easier and faster for operation.
- Anti-scratch Capping Wheel: 4 clamp capping wheel, silica gel material prevents scratches on the caps while working.
- Automatic Cap Feeding System (optional): Can equip with automatic cap feeding system, save manpower. Customize according to different cap design.
- Capping Motor: Motor controls capping wheel, ensure the stable performance and high working accuracy.
- Easy Adjustment System: With screw handles and clamping conveyor adjustment, easily to adjust the machine when change different bottles or different caps.One set machine can fit different shapes of bottles and caps.
- Wide Application: Machine with easy adjustment design for wide application, one set machine can serve various shapes of bottles and caps, such as jars, bottles; and flip-top caps, trigger caps, pump head caps, etc.

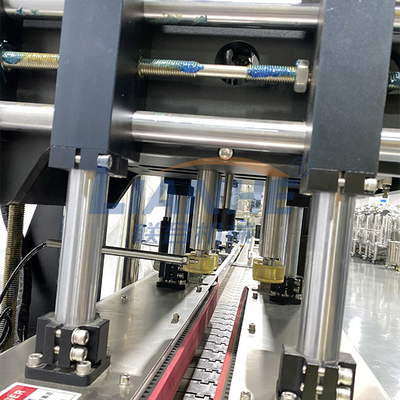

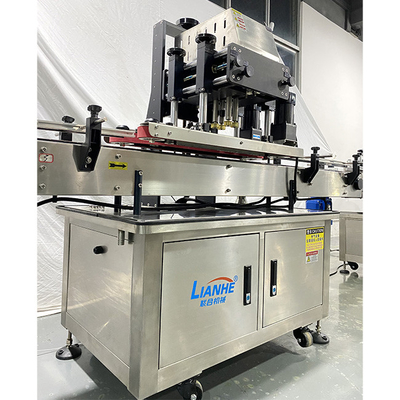

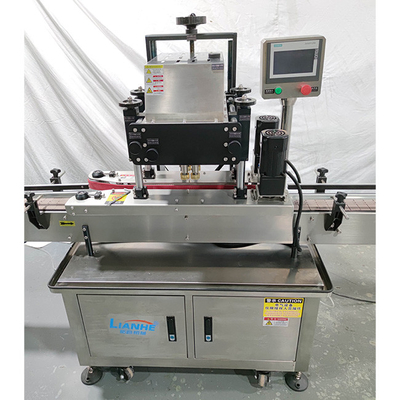

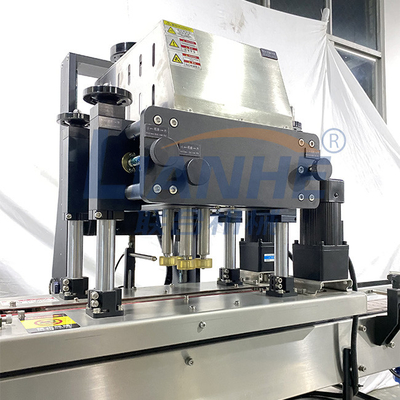

Product details:
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
