500L Liquid Buttom Homogenizer Emulsifier Mixer Single Layer
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-PMC 500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, L/C, D/A, Cash |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 50-6000L (Customized) | Material: | SUS316L |
|---|---|---|---|
| Mixing Speed: | 0-65 Rpm | Homogenizing Speed: | 3000 Rpm |
| Motor Brand: | SIEMENS Or ABB | Product: | Sanitizer Gel, Liquid Soap, Shampoo, Serum, Etc |
| High Light: | Buttom Homogenizer Emulsifier Mixer,500L Liquid Homogenizer Emulsifier Mixer,Single Layer Homogenizer Emulsifier Mixer |
||
Product Description

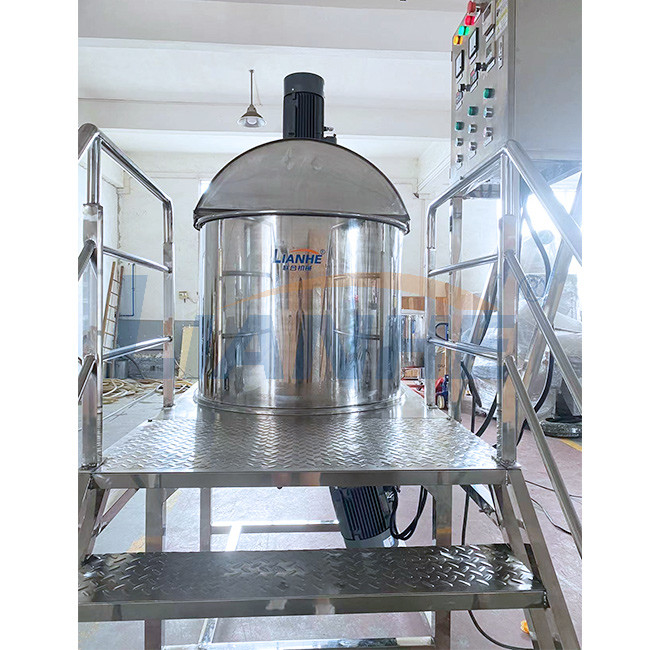

500L Liquid Homogenizer Emulsifier Mixer Single Layer with Buttom Homogenizer
Product Description:
This machine is widely applied in chemical, pharmaceutical, beverage, food and process industries. Our high speed mixing tank can make according to customer's requirement for the structure, single-layer, double-layer(jacket) and three-layer(insulation layer) or make limpet coil(inside or external ) to heating and cold.Also we design the different type agitator for the different raw material ,the capacity we can make from 50L to 5000L.
Product Application:
This machine is applicable in cosmetic, daily chemical, food, pharmaceutical, agricultural industries such as shampoo, hand sanitizer, liquid soap, detergent, disinfectant, beverage, fruit juice, mayonnaise, body cream, pesticide, fertilizer, chemical liquid, etc. products.

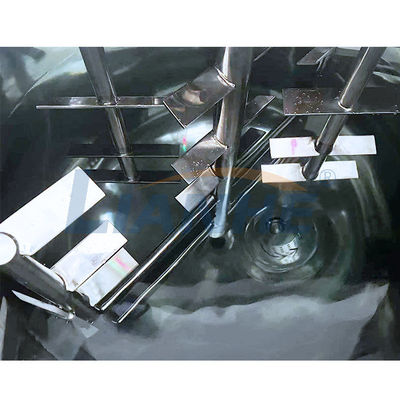

◭The all-round wall scraping mixing adopts the frequency converter for speed adjustment , so that high quality products ofdifferent processes according to customer requirements.
◭The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve manyindissoluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy consumpion and shorten production period.
◭The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mittor polishing , which fully conforms to GMP requirements.
◭According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge , bottom direct discharge or by transfer pump.
Product Parameters:
|
Model |
Capacity (L) |
Agitator |
Homiogenizer |
Heating system |
|||
|
power (kw) |
speed (rpm) |
power (kw) |
speed (rpm) |
Electric heating (kw) |
Steam heating (Mpa) |
||
|
PMC-50 |
50 |
0.75 |
0-65 |
3 |
3000 |
6 |
Steam heating energy conservation and environmental protection, selected according to need |
|
PMC-100 |
100 |
1.5 |
0-65 |
4 |
3000 |
9 |
|
|
PMC-150 |
150 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-200 |
200 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-300 |
300 |
1.5 |
0-65 |
5.5 |
3000 |
18 |
|
|
PMC-500 |
500 |
2.2 |
0-65 |
7.5 |
3000 |
27 |
|
|
PMC-1000 |
1000 |
4 |
0-65 |
11 |
3000 |
36 |
|
|
PMC-1500 |
1500 |
5.5 |
0-65 |
15 |
3000 |
45 |
|
|
PMC-2000 |
2000 |
7.5 |
0-65 |
15 |
3000 |
recommend steam heating |
|
|
PMC-3000 |
3000 |
11 |
0-65 |
15 |
3000 |
||
|
PMC-5000 |
5000 |
11 |
0-65 |
22 |
3000 |
||
|
The parameters for reference only, all the machines can be customized accordingly. |
|||||||
Specification:
1.Capacity: 50L- 20000L
2.Material: SS304 and SS316L
3.Single layer /Double layers/Three layers
4.Polished inside and outside
5.Top opened / Quick open manhole
Why Choose Us:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
