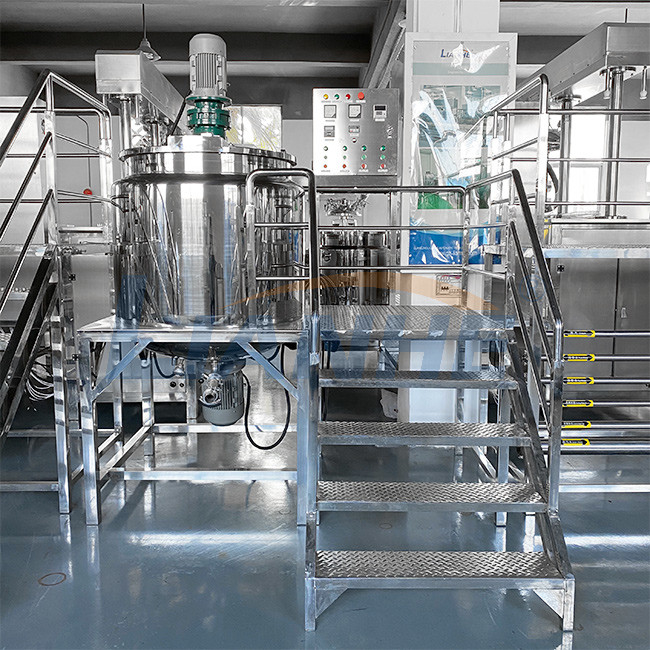

500L Liquid Agitator Homogenizer Emulsifier Mixer Hand Wash Sanitizer Gel Making
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-PMC 500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Material: | SUS304/SUS316(Material Contact Part) | Power Supply: | 220V/380V/3phase (Customized) |
|---|---|---|---|
| Mixing Speed: | 0-65 Rpm | Mixing Motor: | SIEMENS/ABB |
| Key Selling Points: | Long Service Life | Homogenizer Speed: | 3000rpm |
| Heating Way: | Electric / Steam Heating | Capacity: | 25-6000L |
| High Light: | Agitator Homogenizer Emulsifier Mixer,500L Liquid Homogenizer Emulsifier Mixer |
||
Product Description
500L Liquid Agitator Homogenizer Emulsifier Mixer Hand Wash Sanitizer Gel Making
Product Description:
500L Liquid Agitator Homogenizer Emulsifier Mixer Hand Wash Sanitizer Gel Makingon sale for hand washing manufacturing shower gel mixing machine is our latest prouct research and developed by our company which combined overseas superior emulsifier experience with domestic cosmetic enterprise feedback.
2021 LIENM homogenizer tank blending cream jacketed liquid mixer tank heating stainless steel mixing machine on sale for hand washing manufacturing shower gel mixing machine adopts imported stainless steel, scientific homogenizing system, reasonable scraper blending to ensure equivalent homogenizing and make product more smooth, even and bright.
Product Application:
This machine is applicable in cosmetic, daily chemical, food, pharmaceutical, agricultural industries such as shampoo, hand sanitizer, liquid soap, detergent, disinfectant, beverage, fruit juice, mayonnaise, body cream, pesticide, fertilizer, chemical liquid, etc. products.
stainless steel mixing tank could be used in food, beverage, pharmacy, chemical industry,wine and alcohol etc industries.
The inside surface finish of stainless steel mixing tank is Mirror polished, Ra<0.4um.
The welding are polished to ground smooth.
There are various agitator options of stainless steel mixing tank: impeller type, Anchor type, Turbine type, High shear
mixer,magnetic mixer. The mixing tank could be made with or without jacket.
stainless steel food grade mixing tank could be made with or without jacket. Jacket type including full jacket, Dimple
jacket,Heating coils. Heating and cooling type including steam heating and electric heating.
Product Parameters:
|
Model |
Capacity (L) |
Agitator |
Homiogenizer |
Heating system |
|||
|
power (kw) |
speed (rpm) |
power (kw) |
speed (rpm) |
Electric heating (kw) |
Steam heating (Mpa) |
||
|
PMC-50 |
50 |
0.75 |
0-65 |
3 |
3000 |
6 |
Steam heating energy conservation and environmental protection, selected according to need |
|
PMC-100 |
100 |
1.5 |
0-65 |
4 |
3000 |
9 |
|
|
PMC-150 |
150 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-200 |
200 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-300 |
300 |
1.5 |
0-65 |
5.5 |
3000 |
18 |
|
|
PMC-500 |
500 |
2.2 |
0-65 |
7.5 |
3000 |
27 |
|
|
PMC-1000 |
1000 |
4 |
0-65 |
11 |
3000 |
36 |
|
|
PMC-1500 |
1500 |
5.5 |
0-65 |
15 |
3000 |
45 |
|
|
PMC-2000 |
2000 |
7.5 |
0-65 |
15 |
3000 |
recommend steam heating |
|
|
PMC-3000 |
3000 |
11 |
0-65 |
15 |
3000 |
||
|
PMC-5000 |
5000 |
11 |
0-65 |
22 |
3000 |
||
|
The parameters for reference only, all the machines can be customized accordingly. |
|||||||
Product Features:
1. The mixing tank is made of all stainless steel materials. Its inner wall is made of high-quality 316L stainless steel (The part in contact with the material). The tank and pipe are mirror polished. Complying with GMP requirements and specifications.

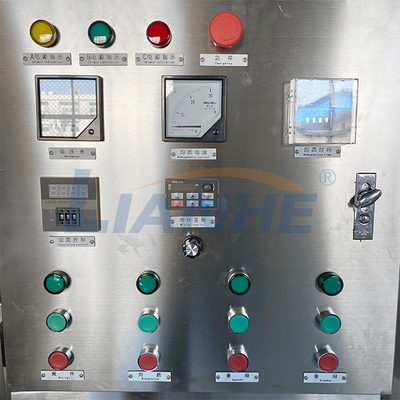

2. The equipment consists of a stainless steel electric control cabinet and a main pot. The whole machine has a compact structure and it is easy to operate.
3. You can configure heating pot and cooling pot separately according to actual requirements. The materials can be heated or cooled according to process requirements. The heating method can be steam heating or electric heating.
4. There are various types of durable agitator blade, with strong mixing strength. It is suitable for the production of different products.
