3000rpm Homogenizer Emulsifier Mixer Liquid Washing Detergent Blender
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-PMC 300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Material: | SUS304/SUS316(Material Contact Part) | Power Supply: | 220V/380V/3phase (Customized) |
|---|---|---|---|
| Mixing Speed: | 0-65 Rpm | Mixing Motor: | SIEMENS/ABB |
| Key Selling Points: | Long Service Life | Homogenizer Speed: | 3000rpm |
| Heating Way: | Electric / Steam Heating | Capacity: | 25-6000L |
| High Light: | 3000rpm Homogenizer Emulsifier Mixer,Washing Detergent Homogenizer Emulsifier Mixer |
||
Product Description
Mixing Group Homogenizer Emulsifier Mixer Liquid Washing Detergent Blender
Product Description:
Mixing Group Homogenizer Emulsifier Mixer Liquid Washing Detergent Blender, it's widely applied in the liquid daily chemicals, food, dairy, pharmaceutical, chemical and process industries used as blending tank, buffer tank, melting tank, high shear mixing tank and emulsifying tank, which cleanable to sanitary standards .
You can customize its size to suit large, medium and small production, and you can also customize a complete set of production lines. In addition, we can design the machine according to the drawings you provide, or design the drawings and machines according to your specific requirements.
Product Application:
This machine is applicable in cosmetic, daily chemical, food, pharmaceutical, agricultural industries such as shampoo, hand sanitizer, liquid soap, detergent, disinfectant, beverage, fruit juice, mayonnaise, body cream, pesticide, fertilizer, chemical liquid, etc. products.
1) Material: SUS304/ SUS 316L
2) Layer: Single layer/ double layers/ three layers
3) Power: 0.55~55KW
4) Capacity: 50~50000L
5) Voltage: 110V~680V, can be customized
6) Heating Type: electric/ steam heating
7) Polish: mirror polish inside and outside
8) Top: flate top with lid / closed cover
Product Parameters:
|
Model |
Capacity (L) |
Agitator |
Homiogenizer |
Heating system |
|||
|
power (kw) |
speed (rpm) |
power (kw) |
speed (rpm) |
Electric heating (kw) |
Steam heating (Mpa) |
||
|
PMC-50 |
50 |
0.75 |
0-65 |
3 |
3000 |
6 |
Steam heating energy conservation and environmental protection, selected according to need |
|
PMC-100 |
100 |
1.5 |
0-65 |
4 |
3000 |
9 |
|
|
PMC-150 |
150 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-200 |
200 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-300 |
300 |
1.5 |
0-65 |
5.5 |
3000 |
18 |
|
|
PMC-500 |
500 |
2.2 |
0-65 |
7.5 |
3000 |
27 |
|
|
PMC-1000 |
1000 |
4 |
0-65 |
11 |
3000 |
36 |
|
|
PMC-1500 |
1500 |
5.5 |
0-65 |
15 |
3000 |
45 |
|
|
PMC-2000 |
2000 |
7.5 |
0-65 |
15 |
3000 |
recommend steam heating |
|
|
PMC-3000 |
3000 |
11 |
0-65 |
15 |
3000 |
||
|
PMC-5000 |
5000 |
11 |
0-65 |
22 |
3000 |
||
|
The parameters for reference only, all the machines can be customized accordingly. |
|||||||
Product Features:
1. The mixing tank is made of all stainless steel materials. Its inner wall is made of high-quality 316L stainless steel (The part in contact with the material). The tank and pipe are mirror polished. Complying with GMP requirements and specifications.

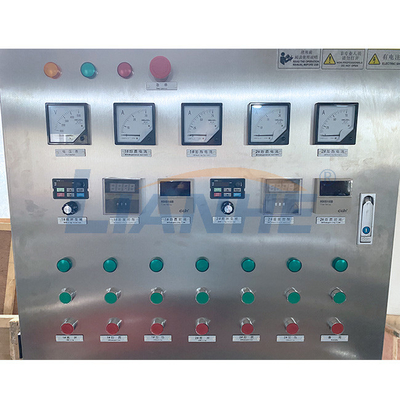

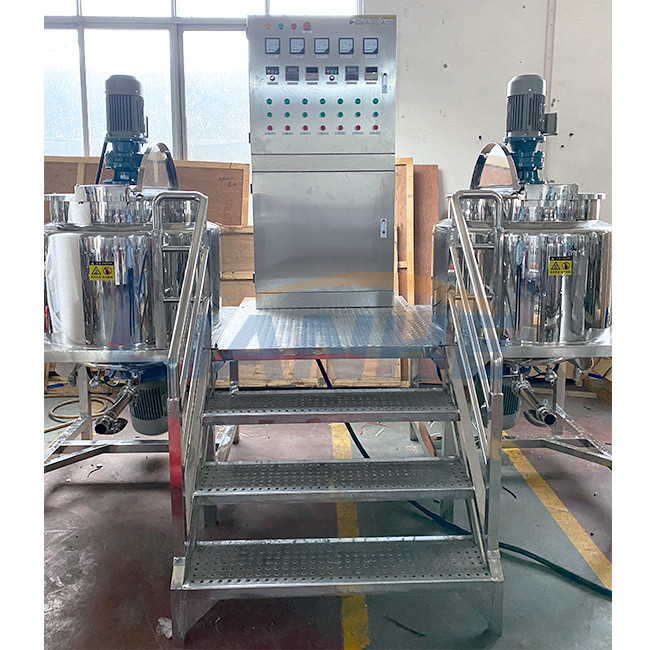

2. The equipment consists of a stainless steel electric control cabinet and a main pot. The whole machine has a compact structure and it is easy to operate.
3. You can configure heating pot and cooling pot separately according to actual requirements. The materials can be heated or cooled according to process requirements. The heating method can be steam heating or electric heating.
4. There are various types of durable agitator blade, with strong mixing strength. It is suitable for the production of different products.
1) Certificates: CE ,ISO, 3A
2) Warranty: 12 months
3) OEM/ODM:can design, exploitation and manufacture by CAD software and drawing.
4) Testing&QC: pressure test and material tes
