SUS304 Automatic Bottle Capping Machine 0.6-0.8 Mpa Rustproof
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Applicable Cap: | Pump Head, Flip-top Head, Trigger Cap, Other Design | Production Capacity: | 30-50 Caps/Min |
|---|---|---|---|
| Control: | PLC Touch Screen Control | Machine Type: | Four-wheel Clamping |
| Driven Type: | Electric And Pneumatic | Applicable Cap Size: | 20-110mm (customized Available) |
| High Light: | SUS304 Bottle Capping Machine,0.6 Mpa Bottle Capping Machine,0.8 Mpa Automatic Capping Machine |
||
Product Description

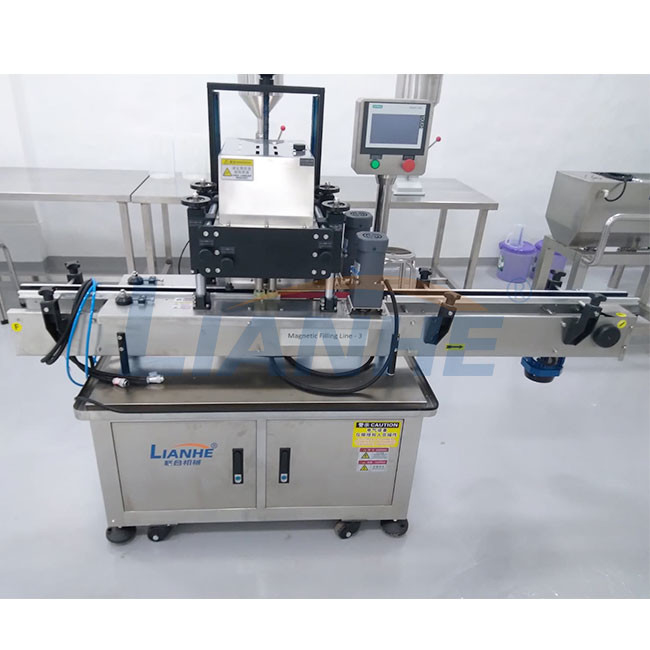

Automatic Bottle Capping Machine Bottle Cap Sealing Machine
Product description:
This automatic screw capping machine is one of the main equipment of automatic filling production line, capping machine is a kind of sealing machine, plastic bottle cap sealing machine is widely used in glass bottle or PET bottles of screw cap sealing, because the screw cap with sealing fast, easy to open and re-open Screw cap,etc., so some non-gas liquid material, such as beverages, alcohol, spices and other similar packaging of the bottle with a large number of screw cap sealing. The use of invert control, the application of the principle of the cam drive, disk divider positioning, implementation of the circular screw cap screw cap. bottle cap sealing machine put the cover on bottle by hand, screw cap, cap with magnetic combination of structure, the cap does not hurt the lid, screw cap easy to remove, different caps and bottles only need to replace a few parts, you can use glass bottle cap sealing machine, and filling machine, labeling Machine connection production, food, beverages, medicine, daily chemicals, chemical industry, the best equipment.
Product application:
Suitable for bottles or jars, pump head, flip-top head, jars cap, trigger cap, etc.
Product parameters:
| Technical Parameters | |
| Capping speed | 30-50 bottles per minute |
| Applicable cap | Flip-top type, pump-head type, trigger type, dropper type, and all other screw type cap |
| Capping form | 4 wheels clamp screw the cap |
| Material | Stainless steel 304 |
| Capping motor | 220W motor |
| Air Pressure | 0.6-0.8 Mpa |
| Cap feeding | Manually or automatically selectable |
| Voltage | Single phase voltage, customized according to your request |
Product advantages:
1. Rotary Knob: different diameter bottle clamping and bottle height can be adjusted by rotating knob, suitable bottle height is 20-110mm, also can be customized according to your actual bottle samples. Stainless steel 304 machine body for higher quality standard.
2. Bottle height rotary knob: capping head can be adjusted according to different height of bottle by this rotating knob, suitable bottle height is 30-300mm (can be customized according to your actual bottle size.
3. Bottle sensor (SICK or Panasonic), high quality sensor sense the bottle automatically, it helps to improve working speed and save a lot of labor.

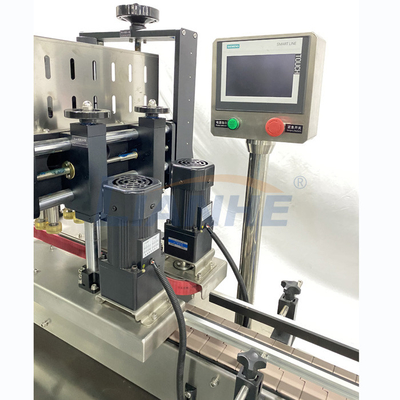

4. Operation panel: SIEMENS PLC touch screen control system, for stable performance and high class appearance.
Product Features:
1.Automatic cap sorting,automatic cap feeding,automatic capping,high production speed, high efficiency, stable and reliable operation.
2.Can be applied to the shape of a round bottle, square, all kinds of special-shaped, strong applicability.
3.Low failure rate, stable and reliable performance, long service life.
4.Adjustable cap sorting speed.
5.Automatic start and stop function.
Product details:

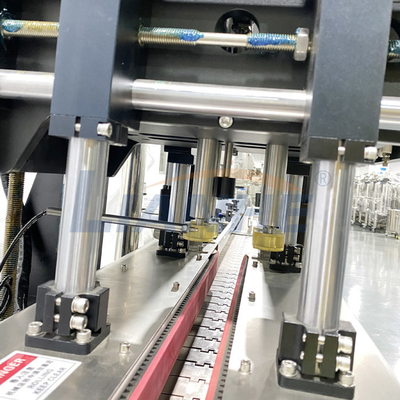

1. 4 wheels screwing capping head, its capping height and capping width is adjustable to suit your different caps diameter.
2. SIEMENS PLC touch screen control, high class appearance, stable performance.
3. Automatic cap feeding system can be added if you need.
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
