1.5KW Hand Sanitizer Production Equipment , 2 Jackets Homogenizer Mixer For Cosmetics
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-PMC 100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, L/C, D/A, Cash |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 50-6000L (Customized) | Product Application: | Cosmetic, Daily Chemical, Shower Gel, Shampoo |
|---|---|---|---|
| Mixing Speed: | 0-65 Rpm | Homogenizing Speed: | 3000 Rpm |
| Heating Method: | Electric Heating Or Steam Heating Optional | Layer: | 3 Layers, Double Jackets |
| High Light: | 1.5KW Hand Sanitizer Production Equipment,SUS316L Hand Sanitizer Production Equipment,2Jackets Homogenizer Mixer For Cosmetics |
||
Product Description
100L Homogenizer Emulsifier Mixer Hand Sanitizer Making Mixer
Product Description:
This machine is the equipment commonly used by daily chemical companies such as cosmetic shampoo, shower gel, hand sanitizer and so on. Through the adjustable speed stirring of the paddle in the pot and the homogenizer at the bottom, the materials are fully mixed and blended and stirred evenly. According to the requirements of the production process, the materials can be heated or cooled by heating in the jacket. Set a specific temperature, when the temperature reaches the required requirements, the heating device automatically stops heating.
Product Parameters:
|
Model |
Capacity (L) |
Agitator |
Homiogenizer |
Heating system |
|||
|
power (kw) |
speed (rpm) |
power (kw) |
speed (rpm) |
Electric heating (kw) |
Steam heating (Mpa) |
||
|
PMC-50 |
50 |
0.75 |
0-65 |
3 |
3000 |
6 |
Steam heating energy conservation and environmental protection, selected according to need |
|
PMC-100 |
100 |
1.5 |
0-65 |
4 |
3000 |
9 |
|
|
PMC-150 |
150 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-200 |
200 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-300 |
300 |
1.5 |
0-65 |
5.5 |
3000 |
18 |
|
|
PMC-500 |
500 |
2.2 |
0-65 |
7.5 |
3000 |
27 |
|
|
PMC-1000 |
1000 |
4 |
0-65 |
11 |
3000 |
36 |
|
|
PMC-1500 |
1500 |
5.5 |
0-65 |
15 |
3000 |
45 |
|
|
PMC-2000 |
2000 |
7.5 |
0-65 |
15 |
3000 |
recommend steam heating |
|
|
PMC-3000 |
3000 |
11 |
0-65 |
15 |
3000 |
||
|
PMC-5000 |
5000 |
11 |
0-65 |
22 |
3000 |
||
|
The parameters for reference only, all the machines can be customized accordingly. |
|||||||

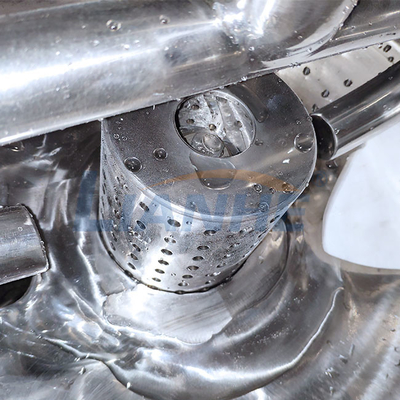

Homogenizer
Bottom Homogenizer (can be customized to upper homogenizer)
Material: SUS316L
Motor power: Depends on capacity
Speed: 0-3600rpm, DELTA inverter
Processing methods: Rotor and stator adopts wire-cutting finish machining, polishing treatment before assembly

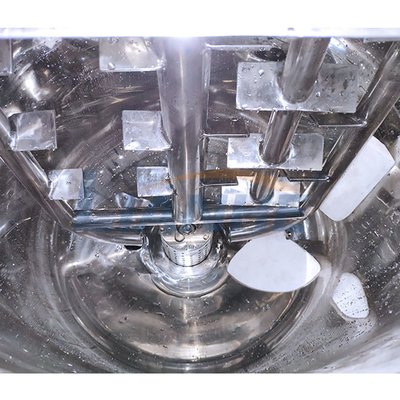

Stirrer paddle & scraper blade
Frame oar wall single way scrapping mixing (can be customized to double way mixing, circulation mixing etc.)
Stirrer paddle: SUS316L
Scraper blade: PTFE material, white
Motor power: Depends on capacity
Speed: 0-65rpm, DELTA inverter
Adopting Germany Bergman mechanical seal, NSK bearing made in Japan
Electric control system
Can be customized to PLC+ Touch screen
Outer layer material: adopt SUS304 Stainless steel plate, thickness:1.5mm
Meter: thermometer, Time digital display met, voltmeter, Homogenizer time reply
Button: Each function switch control button, emergency switch, light switch, start/stop buttons
Indicate Light: RYG 3 colors indicate light and all system working indicate
The electrical components: include various control relay
Tank Cover
- Half open lid, stainless steel material.
- Pipe: All contact material parts adopt GMP hygiene standards SUS316L, Sanitation grade accessories & valves

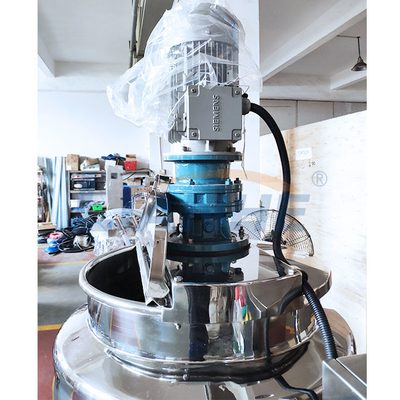

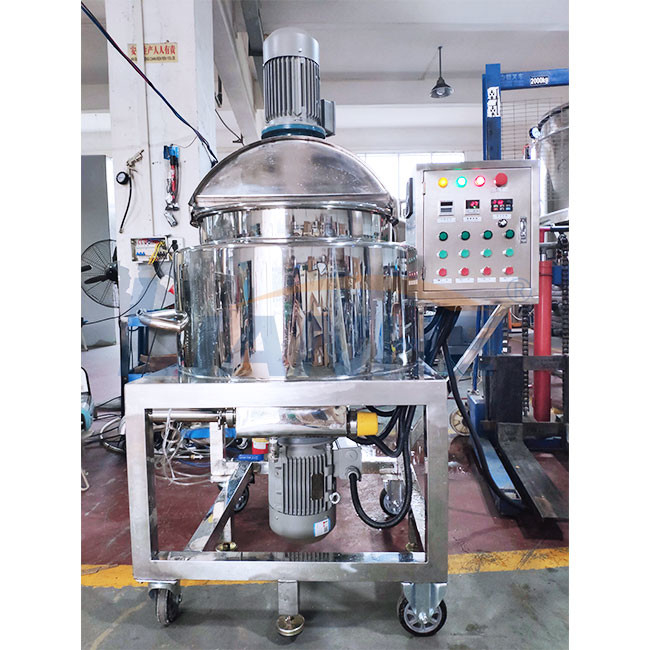

Detail Pictures:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
