Durable 500L Sugar Syrup Making Machine 220V/380V With Circulation Pump
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-PMC 500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 50-6000L (Customized) | Material: | SUS304/SUS316(Material Contact Part) |
|---|---|---|---|
| Power Supply: | 220V/380V/3phase (Customized) | Mixing Speed: | 0-65 Rpm |
| Homogenizing Speed: | 3000 Rpm | Mixing Motor: | SIEMENS Or ABB |
| Homogenizer Motor: | SIEMENS Or ABB | Key Selling Points: | Low Maintenance Cost |
| High Light: | 220V Sugar Syrup Making Machine,Pump Sugar Syrup Making Machine,380V Sugar Syrup Manufacturing Machine |
||
Product Description

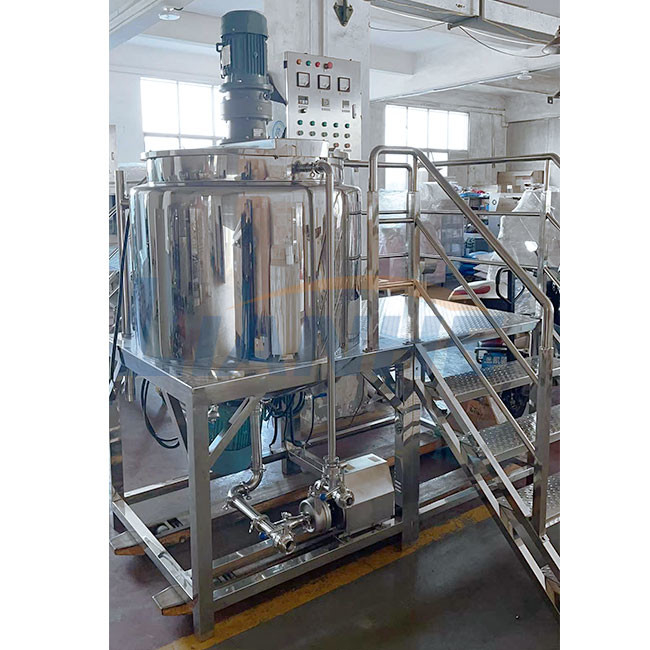

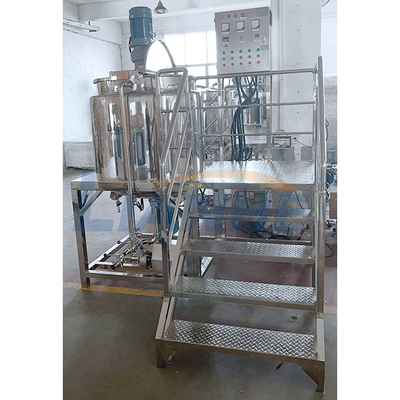

500L Syrup Lotion Homogenizer Emulsifier Mixer With Circulation Pump
Product Description:
This machine is widely applied in chemical, pharmaceutical, beverage, food and process industries. Our high speed mixing tank can make according to customer's requirement for the structure, single-layer, double-layer(jacket) and three-layer(insulation layer) or make limpet coil(inside or external ) to heating and cold. Also we design the different type agitator for the different raw material ,the capacity we can make from 50L to 5000L.
Product Application:
1. Cosmetics industry: skin care cream, shaving cream, shampoo, toothpaste, cold cream, cold sun cream, facial cleanser, nutrition dense, detergent, shampoo, hair cream, conditioner, serum, moisturizing cream, Hand cream and so on.
2 Daily chemical industry: Laundry liquid production, hand sanitizer, toilet net, car glass water.
3. Pharmaceutical Industry: Latex, emulsion, ointment (ointment), oral syrup, oral liquid and the like.
4. Food Industry: Sauces, cheese, nutritional liquid, baby food, chocolate, sugar and so on.
5. Chemical Industry: Latex, Sauce, saponified products, paints, coatings, resins, adhesives, lubricants and so on.
Product Parameters:
|
Model |
Capacity (L) |
Agitator |
Homiogenizer |
Heating system |
|||
|
power (kw) |
speed (rpm) |
power (kw) |
speed (rpm) |
Electric heating (kw) |
Steam heating (Mpa) |
||
|
PMC-50 |
50 |
0.75 |
0-65 |
3 |
3000 |
6 |
Steam heating energy conservation and environmental protection, selected according to need |
|
PMC-100 |
100 |
1.5 |
0-65 |
4 |
3000 |
9 |
|
|
PMC-150 |
150 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-200 |
200 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-300 |
300 |
1.5 |
0-65 |
5.5 |
3000 |
18 |
|
|
PMC-500 |
500 |
2.2 |
0-65 |
7.5 |
3000 |
27 |
|
|
PMC-1000 |
1000 |
4 |
0-65 |
11 |
3000 |
36 |
|
|
PMC-1500 |
1500 |
5.5 |
0-65 |
15 |
3000 |
45 |
|
|
PMC-2000 |
2000 |
7.5 |
0-65 |
15 |
3000 |
recommend steam heating |
|
|
PMC-3000 |
3000 |
11 |
0-65 |
15 |
3000 |
||
|
PMC-5000 |
5000 |
11 |
0-65 |
22 |
3000 |
||
|
The parameters for reference only, all the machines can be customized accordingly. |
|||||||
Product Features:
1. The top mixing motor is high quality. It controls the mixing paddle to mix the product evenly. The mixing speed can be adjusted from 0 to 65 rpm.
2. The mixing paddles is made with frame shape. It can mix the product completely. The paddle shape can be customized according to the requirement of the customers based on different products. With polish inside of the tank, all of the paddle and tank inside are made from 316L, which meets the GPM standard.
3. The bottom homogenizing motor is high quality. The homogenizer has the function of high shearing. The side hole connect with outer circulation pipe, control by ball valve. And the homogenizer on the bottom of the pot can high shear the material into small molecule, which makes the product to be more delicate.
4. The control panel is make with button control, which is easy to operate. The staffs with normal training can control the machine. It can also be customized into touch screen control panel according to your need.
Product Details:
Our Servers:
As a professional mixing equipment manufacturer, we customize machines to meet customer needs. We can send our skilled engineers to the customer’s factory to install the machine correctly. We also provide a one-year warranty for all our machines and after-sales service.
