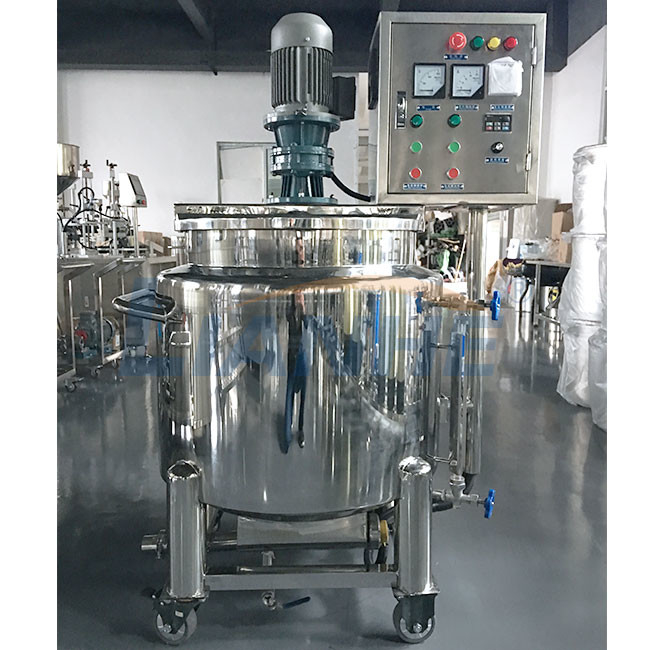

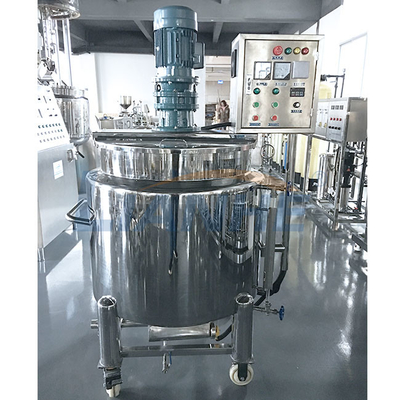

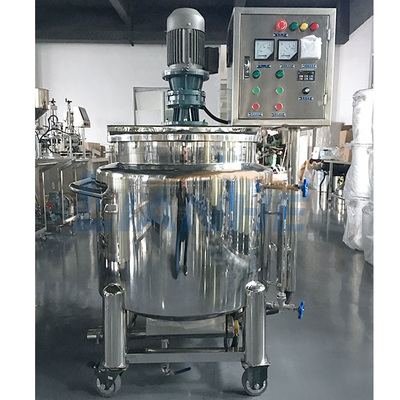

100L ABB Vacuum Mixer Homogenizer , Steam Dishwashing Liquid Making Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-PMC 100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 50-6000L (Customized) | Motor Brand: | SIEMENS Or ABB |
|---|---|---|---|
| Mixing Speed: | 0-65 Rpm | Homogenizing Speed: | 3000 Rpm |
| Heating Method: | Steam Or Electric (Optional) | Cooling Method: | Water Cooling Or Chiller Cooling |
| High Light: | 100L Vacuum Mixer Homogenizer,ABB Vacuum Mixer Homogenizer,Steam Dishwashing Liquid Making Machine |
||
Product Description
100l SUS316L Heating Stirring Tank Detergent Moisturizer Making Machine
Product Description:
The homogenizer is available for manufacturing liquid products (Such as Detergent, Shampoo, Shower gel, Liquid soap etc.) , It integrates mixing, homogenizing, heating, cooling, pump discharge finished products and defoaming (optional) functions. It is the ideal equipment for liquid products in domestic and international factories.
Product Parameters:
|
Model |
Capacity (L) |
Agitator |
Homiogenizer |
Heating system |
|||
|
power (kw) |
speed (rpm) |
power (kw) |
speed (rpm) |
Electric heating (kw) |
Steam heating (Mpa) |
||
|
PMC-50 |
50 |
0.75 |
0-65 |
3 |
3000 |
6 |
Steam heating energy conservation and environmental protection, selected according to need |
|
PMC-100 |
100 |
1.5 |
0-65 |
4 |
3000 |
9 |
|
|
PMC-150 |
150 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-200 |
200 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-300 |
300 |
1.5 |
0-65 |
5.5 |
3000 |
18 |
|
|
PMC-500 |
500 |
2.2 |
0-65 |
7.5 |
3000 |
27 |
|
|
PMC-1000 |
1000 |
4 |
0-65 |
11 |
3000 |
36 |
|
|
PMC-1500 |
1500 |
5.5 |
0-65 |
15 |
3000 |
45 |
|
|
PMC-2000 |
2000 |
7.5 |
0-65 |
15 |
3000 |
recommend steam heating |
|
|
PMC-3000 |
3000 |
11 |
0-65 |
15 |
3000 |
||
|
PMC-5000 |
5000 |
11 |
0-65 |
22 |
3000 |
||
|
The parameters for reference only, all the machines can be customized accordingly. |
|||||||
1.The blending tank adopts full stainless steel material, especially in contact with the material layer, adopt 316L stainless steel to meet the requirements of GMP pharmaceutical level.

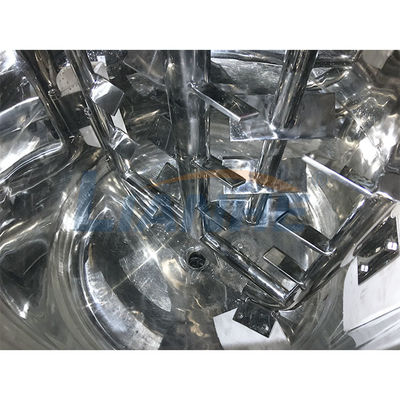

2.The mixing blade is sturdy box type impeller design. The stirring intensity is big, durable, impeller outer ring with scraping plate edge.
3.The mixing motor is equipped with frequency control, so that you can adjust the stirring speed according to the demand of the production process.
4.The stirring pot flip design facilitate feeding and cleaning the pot body inside.

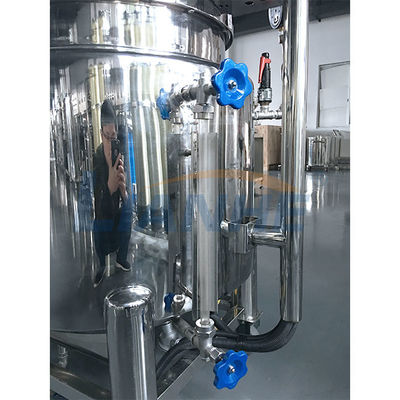

5.The material discharge is on the bottom of the pot with the valve control. With the help of gravity and the good fluidity of the product, the product can discharge automatically, which makes it simple and efficient. The stir can be customized according to customer's product features.
6.The equipment is composed of electrical control cabinet and the main pot.
Product Details:
1. Motor brand: Siemens or ABB
2. Material: SUS304&316L
3. Stirring method: wall-mounted stirring, with Teflon scraper
4. Control method: button control
5. Electrical components: Schneider, Siemens and other international brands
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
