1.5KW 200L Sanitizer Homogenizer Emulsifier Mixer Heating Jacketed
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-PMC 200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 50-6000L (Customized) | Key Selling Points: | Low Maintenance Cost |
|---|---|---|---|
| Mixing Motor: | SIEMENS Or ABB | Mixing Speed: | 0-65 Rpm |
| Homogenizer Motor: | SIEMENS Or ABB | Homogenizing Speed: | 3000 Rpm |
| Heating Method: | Steam Or Electric (Optional) | Cooling Method: | Water Cooling Or Chiller Cooling |
| High Light: | 1.5KW Homogenizer Emulsifier Mixer,Sanitizer Homogenizer Emulsifier Mixer,Heating Jacketed Sanitizer Manufacturer Machine |
||
Product Description

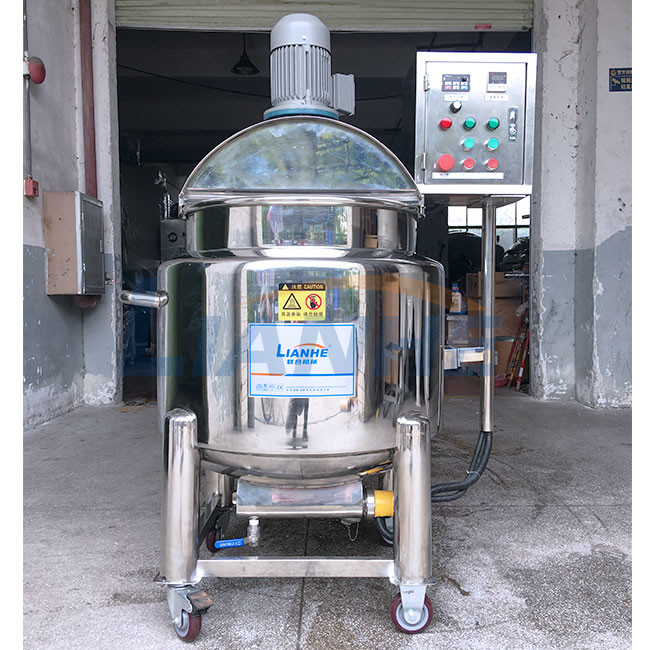

200L Heating Jacketed Mixing Tank Body Lotion Making Machine
Product Description:
The homogenizer is available for manufacturing liquid products (Such as Detergent, Shampoo, Shower gel, Liquid soap etc.) , It integrates mixing, homogenizing, heating, cooling, pump discharge finished products and defoaming (optional) functions. It is the ideal equipment for liquid products in domestic and international factories.
Product Parameters:
|
Model |
Capacity (L) |
Agitator |
Homiogenizer |
Heating system |
|||
|
power (kw) |
speed (rpm) |
power (kw) |
speed (rpm) |
Electric heating (kw) |
Steam heating (Mpa) |
||
|
PMC-50 |
50 |
0.75 |
0-65 |
3 |
3000 |
6 |
Steam heating energy conservation and environmental protection, selected according to need |
|
PMC-100 |
100 |
1.5 |
0-65 |
4 |
3000 |
9 |
|
|
PMC-150 |
150 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-200 |
200 |
1.5 |
0-65 |
4 |
3000 |
12 |
|
|
PMC-300 |
300 |
1.5 |
0-65 |
5.5 |
3000 |
18 |
|
|
PMC-500 |
500 |
2.2 |
0-65 |
7.5 |
3000 |
27 |
|
|
PMC-1000 |
1000 |
4 |
0-65 |
11 |
3000 |
36 |
|
|
PMC-1500 |
1500 |
5.5 |
0-65 |
15 |
3000 |
45 |
|
|
PMC-2000 |
2000 |
7.5 |
0-65 |
15 |
3000 |
recommend steam heating |
|
|
PMC-3000 |
3000 |
11 |
0-65 |
15 |
3000 |
||
|
PMC-5000 |
5000 |
11 |
0-65 |
22 |
3000 |
||
|
The parameters for reference only, all the machines can be customized accordingly. |
|||||||
1. The top mixing motor is high quality. It controls the mixing paddle to mix the product evenly. The mixing speed can be adjusted from 0 to 65 rpm.

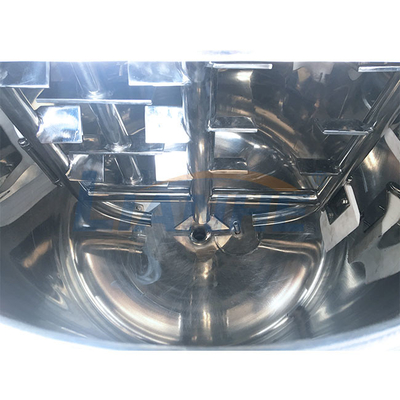

2. The mixing paddles is made with frame shape. It can mix the product completely. The paddle shape can be customized according to the requirement of the customers based on different products. With polish inside of the tank, all of the paddle and tank inside are made from 316L, which meets the GPM standard.

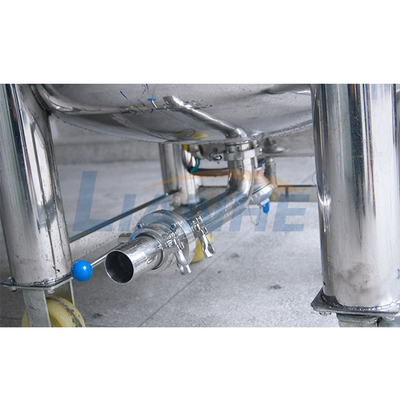

3. The bottom homogenizing motor is high quality. The homogenizer has the function of high shearing. The side hole connect with outer circulation pipe, control by ball valve. And the homogenizer on the bottom of the pot can high shear the material into small molecule, which makes the product to be more delicate. (Optional)

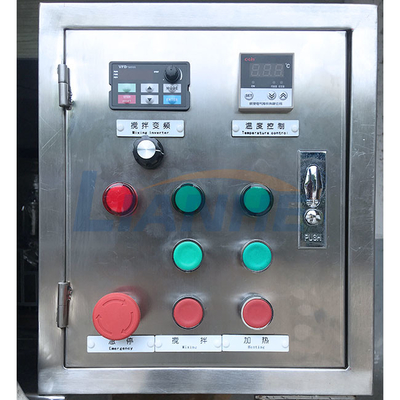

4. The control panel is make with button control, which is easy to operate. The staffs with normal training can control the machine. It can also be customized into touch screen control panel according to your need.
Product Details:
1. Motor brand: Siemens or ABB
2. Material: SUS304&316L
3. Stirring method: wall-mounted stirring, with Teflon scraper
4. Control method: button control
5. Electrical components: Schneider, Siemens and other international brands
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
