200L Movable Homogenizer Emulsifier Mixer For Pharmaceutical
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-PMC 200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 50-6000L (Customized) | Material: | SUS304/SUS316(Material Contact Part) |
|---|---|---|---|
| Mixing Speed: | 0-65 Rpm , SIEMENS/ABB | Homogenizing Speed: | 3000 Rpm , SIEMENS/ABB |
| Key Selling Points: | Long Service Life | Heating Method: | Steam Or Electric Heating |
| High Light: | 200L Homogenizer Emulsifier Mixer,Pharmaceutical Homogenizer Emulsifier Mixer,Movable Pharmaceutical Homogenizer Machine |
||
Product Description
200L Movable Homogenizer Emulsifier Mixer Heating Mixing Tank
Product Description:
This mixing tank is mainly suitable for preparation of liquid detergents (such as cleanser essence, shampoo, shower gel and liquid soap etc.). Integrating blending, dispersing, heating and cooling etc. functions.The reacting machine is and ideal device for liquid preparation in various factories.
Product Application:
This machine is applicable in cosmetic, daily chemical, food, pharmaceutical, agricultural industries such as shampoo, hand sanitizer, liquid soap, detergent, disinfectant, beverage, fruit juice, mayonnaise, body cream, pesticide, fertilizer, chemical liquid, etc. products.
Dear all, thank you for visiting our web. Hope you can find what you need here. For a more efficient communication, please refer to the following question when sending the inquiry:
- What is your product? (liquid soap, or shampoo or ?)
- What is the capacity you need?
- Is your product highly corrosive?
- Does the product needs heating when mixing?
Product parameters:
| Model | Capacity (L) | Agitator | Homiogenizer | Heating system | |||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | Electric heating (kw) | Steam heating (Mpa) | ||
| PMC-50 | 50 | 0.75 | 0-65 | 3 | 3000 | 6 | Steam heating energy conservation and environmental protection, selected according to need |
| PMC-100 | 100 | 1.5 | 0-65 | 4 | 3000 | 9 | |
| PMC-150 | 150 | 1.5 | 0-65 | 4 | 3000 | 12 | |
| PMC-200 | 200 | 1.5 | 0-65 | 4 | 3000 | 12 | |
| PMC-300 | 300 | 1.5 | 0-65 | 5.5 | 3000 | 18 | |
| PMC-500 | 500 | 2.2 | 0-65 | 7.5 | 3000 | 27 | |
| PMC-1000 | 1000 | 4 | 0-65 | 11 | 3000 | 36 | |
| PMC-1500 | 1500 | 5.5 | 0-65 | 15 | 3000 | 45 | |
| PMC-2000 | 2000 | 7.5 | 0-65 | 15 | 3000 |
recommend steam heating |
|
| PMC-3000 | 3000 | 11 | 0-65 | 15 | 3000 | ||
| PMC-5000 | 5000 | 11 | 0-65 | 22 | 3000 | ||
| The parameters for reference only, all the machines can be customized accordingly. | |||||||
Product Characteristics:
1.The blending tank adopts full stainless steel material, especially in contact with the material layer, adopt 316L stainless steel, to meet the requirements of GMP pharmaceutical level.
2.The mixing blade is sturdy box type impeller design, stirring intensity big, durable, impeller outer ring with scraping plate edge.
3.The mixing motor equipped with frequency control, so that you can adjust the stirring speed according to the demand of the production process.
4.The stirring pot flip design facilitate feeding and cleaning the pot body inside.
5.The discharge port on the bottom of the pot, stir highly customized according to customer's tank, using the material of body weight and good liquidity, discharging automatically by the valve control, simple and efficient.

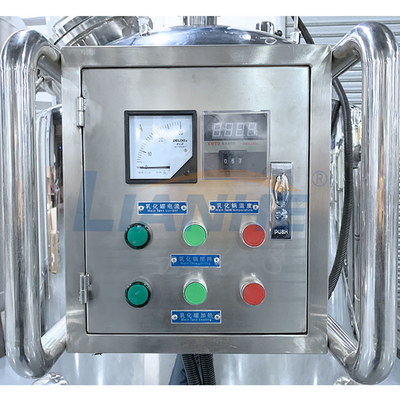

6.The equipment is composed of electrical control cabinet and the main pot.
1. Pharmaceutical Grade
2. High Productivity
3. Easy to Operate
4. Multifunctional
5. Easy to Clean
6. Customizable
7. Low Noise
8. SUS316L
