Stainless Steel 316L Perfume Making Machine 500L With Chiller
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-X 3P-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Capacity: | 200L-1000L | Applicable Industries: | Manufacturing Plant, Perfume Factory |
|---|---|---|---|
| Material: | Stainless Steel 304 / 316L | Operating Type: | Continuous Operating |
| Mixing Motor: | Pneumatic Motor | Filter Pressure: | 0.2 MPa |
| High Light: | Stainless Steel Perfume Making Machine,Chiller Perfume Making Machine,500L Machines Used In Perfume Making |
||
Product Description

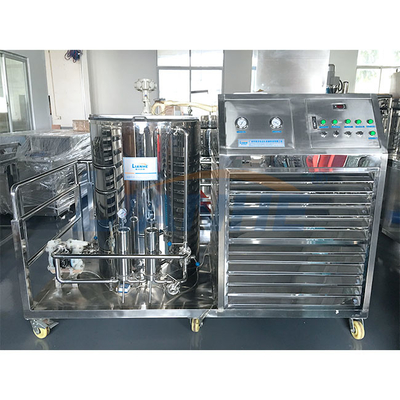

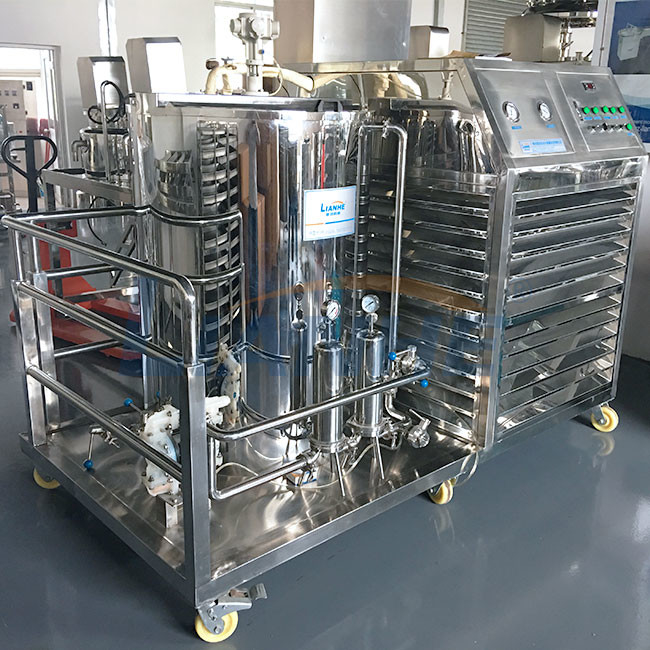

500L Stainless Steel 316L Perfume Making Machine with Chiller and Filter
Product Description:
The product is a latest product developed by our company specially used for clarification and filtration of liqu id such as cosmetics and perfume etc after freezing. It is an ideal device for filtering cosmetics and perfume in cosmetic factories.
The product is made of high quality SUS304 stainless steel or 316L stainless steel. The pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration.
The connecting pipes adopt sanitation grade polishing pipe, most are quick-install connecting way, easy to take apart and clean. Equipped with polypropylene micro porous filtrating membrane which is widely applied in cosmetic industry, research institute, hospital, laboratory etc, to clarify of little fluid and sterilization or chemical analysis, convenient and reliable.
Product Parameters:
| Model |
LH-X
3P-200
|
LH-X
3P-300
|
LH-X
5P-300
|
LH-X
5P-500
|
LH-X
10P-500
|
LH-X
10P-1000
|
LH-X
15P-1000
|
| Freezing power | 3P | 3P | 5P | 5P | 10P | 10P | 15P |
| Freezing capacity | 200L | 300L | 300L | 500L | 500L | 100L | 100L |
| Filtration precision | 0.2μm | 0.2μm | 0.2μm | 0.2μm | 0.2μm | 0.2μm | 0.2μm |
Product Configuration:

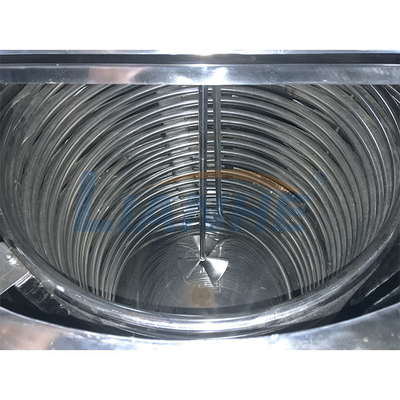

1. Stainless steel heat preservation freezing tank and titanium metal coil pipe
2. Freezing unit (imported from France)
3. Anticorrosive pneumatic diaphragm pump (imported from the USA)
4. Polypropylene microporous filtration film
5. Stainless steel moveable supporter
6. Sealing type electric control system and sanitary pipe fittings and valves
Product Features:
1. This product is the professional filtration for lotion and perfume freezing; cosmetics factory filter lotion is ideal equipment for perfume. The products are made of high quality material SUS316L SUS304 stainless steel or stainless steel, with U.S. imports of pneumatic diaphragm pumps as a source of pressure, positive pressure filtration.
2. Edge then polished pipe with sanitary fittings, quick connectors are used in the form of easy removal and cleaning.
3. Supporting the use of polypropylene microporous.
4. Supporting the use of polypropylene microporous filtration membranes, widely used in the cosmetics industry, research departments, hospitals, laboratories and other units of the small amount of liquid clarification and sterilization filter, or trace chemical analysis, convenient and reliable.
Product Application:
Equipped with polypropylene microporous filtration film, it can be widely used in the cosmetics industry, scientific research, department, hospital, etc. for clarification, bacteria removal, and filtration of small amounts of liquid, or microchemical analysis, which is convenient and reliable.
Product Details:

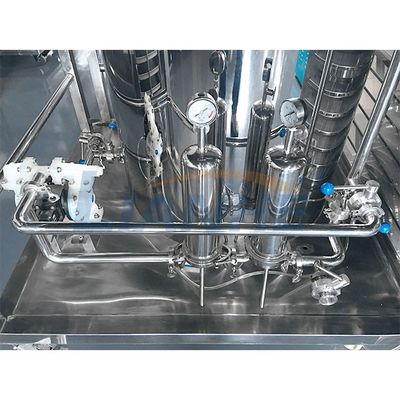

1. Control System
2. Mixing and Cooling Tank
3. Pneumatic Mixing Motor: Taiwan MBP brand
5. Two Stage Filter
6. Filter Cartridge
Our Service:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Maintenance service
