200L-1000L Perfume Making Machine Stainless Steel 304 Material
Product Details:
Place of Origin: | China |
Brand Name: | LIANHE |
Certification: | CE , ISO , SGS , TUV |
Model Number: | LH-X 3P-300 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | Contact Us |
Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
Delivery Time: | 20 working days |
Payment Terms: | T/T, L/C, D/A, D/P, Cash |
Supply Ability: | 30 Sets per Month |
Detail Information |
|||
Capacity: | 50L-1000L | Material: | Stainless Steel 304 / 316L |
---|---|---|---|
Freezing Power: | 3p~15p | Freezing Temperature:: | -5℃ - -15℃ |
Warranty Period:: | 1 Year | Core Selling Point: | Low Maintenance Cost |
High Light: | 200L Perfume Making Machine,1000L Perfume Making Machine,Stainless Steel Perfume Maker Machine |
Product Description

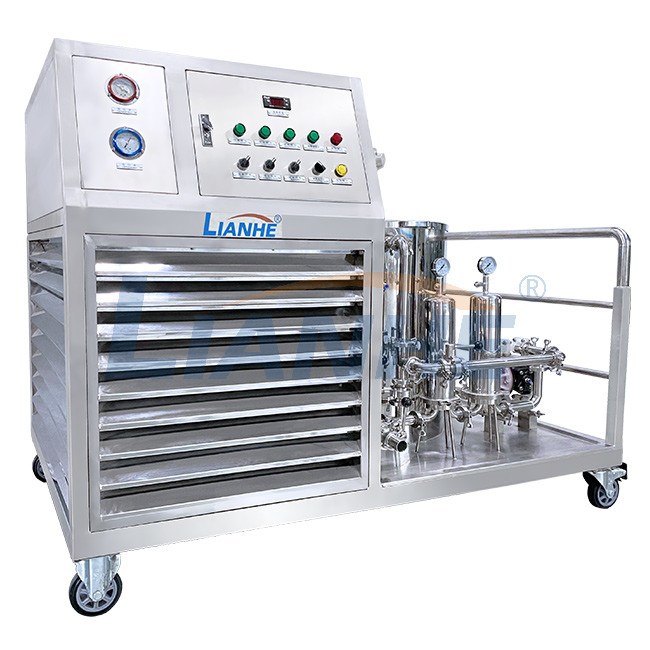

200l - 1000l Perfume Making Machine Perfume Freezing And Mixing Machine
Product Description:
The product is specially used for clarification and filtration of liquid such as cosmetic and perfume etc. after freezing. It is an ideal device for filtering cosmetics and perfume in cosmetic factory. The product is made of high quality 304 stainless steel or 316L stainless steel. The pneumatic diaphram imported from USA is adopted for pressure source to carry out positive pressure filtration.
The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection form, with convenient assembly, disassembly and cleaning. The mixing motor and pump adopt explosion-proof design.
Product parameters:
Model |
LH-X
3P-200
|
LH-X
3P-300
|
LH-X
5P-300
|
LH-X
5P-500
|
LH-X
10P-500
|
LH-X
10P-1000
|
LH-X
15P-1000
|
Freezing power | 3P | 3P | 5P | 5P | 10P | 10P | 15P |
Freezing capacity | 200L | 300L | 300L | 500L | 500L | 100L | 100L |
Filtration precision | 0.2μm | 0.2μm | 0.2μm | 0.2μm | 0.2μm | 0.2μm | 0.2μm |
Product Advantages:
1. Stainless steel insulating frozen tank and titanlum metal pipe;
2. Ultra-low temperature chiller (imported);
3. Antisepsis pneumatic diaphragm pump;
4. Polypropylene micro-porous filtrating membrane;
5. Portable stainless steel bracket;
6. Sealed electronic control system & sanitation pipes and valves.
Equipped with polypropylene micro porous filtrating membrane which is widely applied in cosmetic industry, research institute,
hospital, laboratory, etc. For clarification, bacteria removal and filtration of small amount of liquid, or micro chemical
analysis, which is convenient and reliable.
Product Details:

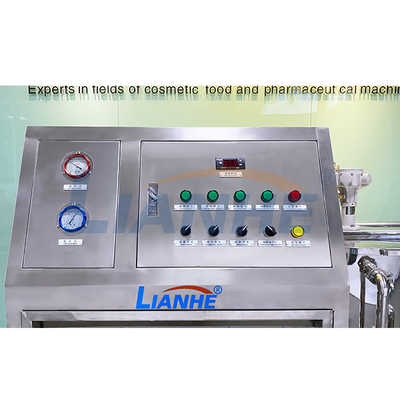

1. Control System: each function is controlled separately,equipped with pressure and temperature display.
2. Mixing and Cooling Tank: the connecting pipe is a sanitary-grade polished pipe, which is completely in the form of quick-installation connection, which is convenient for disassembly and cleaning.
3. Pneumatic Mixing Motor: Taiwan MBP brand pneumatic mixing motor, high speed of mixing, stable performance, explosion-Proof design.

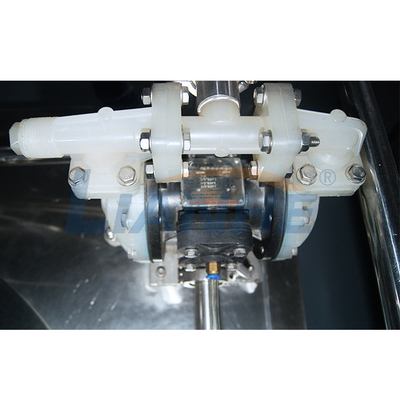

4. Pneumatic Diaphragm Pump: American brand Skylink, Long service life and explosion-Proof design.

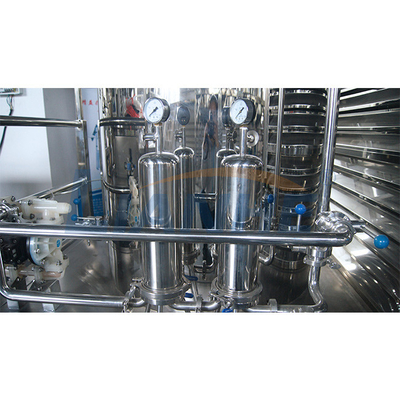

5. Two Stage Filter: the Filter can be widely used for clarification, bacteria removal and filtration or liquid, or micro chemical analysis, which is convenient and reliable.
6. Filter Cartridge: equipped with polypropylene microporous filtration film, Filtration accuracy reach to 0.2 μm.
Our service:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Maintenance service
