380V Double Sided Bottle Labeling Machine Rustproof Multifunctional
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Cash |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Applicable Size Of Label: | Customized | Material: | Stainless Steel |
|---|---|---|---|
| Key Selling Points: | High Speed, Multifunctional | Warranty: | 1 Year |
| Label Accuracy:: | ±1mm | Suitable Bottle: | Round, Flat, Oval Bottle, Square Bottle, Etc |
| High Light: | 380V Bottle Labeling Machine,Rustproof Bottle Labeling Machine,Multifunctional Double Sided Labeling Machine |
||
Product Description

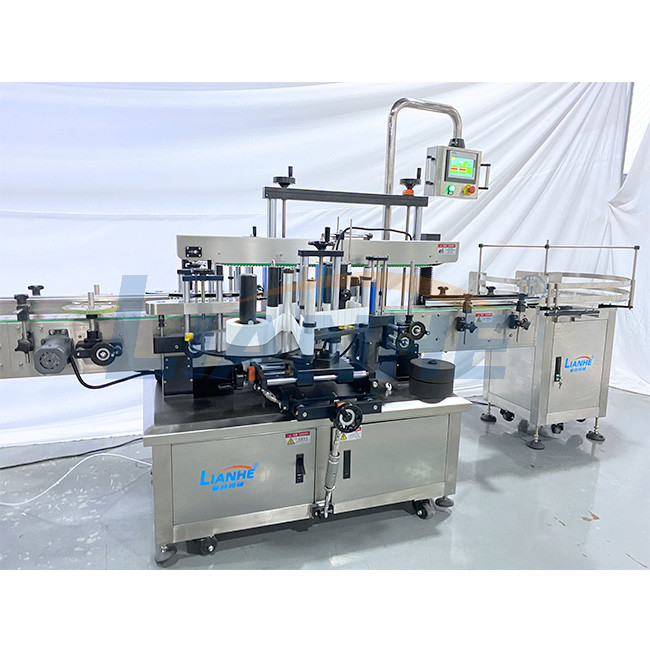

Double-sided Full Automatic Bottle Labeling Machine Bottle Labeler
Product description:
This multifunctional labeling machine is used for the surface labeling for one side or two sides of the round, square and flat objects in such industries as food, medicine, cosmetics and cultural supplies and so on.Adapt PLC system,very convenient to operate and control.The human-machine touch screen automatically adjusts related parameters according to the specific input values. This machine can be customized.
Working Process:
Core works: the product of bottle body separated, the sensor detects the product passes the signal returned to the labeling control system,the control system in place to control the motor sends label affixed to the product subject to labeling and position, product flow the standard unit cover,covered with standard rotation driven products, the label is roll coating, a label attached to the action is completed.
Product Feature:
1. Sticker Labeling Machine adopt mature PLC control system technology, make the whole machine stable
2. This type of Automatic Labeling Machine can be suitable for square /round/oval flat bottles at the same time, Of course client can choose to make one side or double sides labeling.
3. Use touch screen control system, record bottle date,
4. Conveyor with variable speed.
5. Synchronization chain mechanism, to ensure smooth and precise calibration,
6. Transparent sticker labeling without foam, adhesive sticker labeling without wrinkle,
7. Widely used and mutil-function with high flexibility,
8. Date/code printeris for optional,up to 3 lines, or you can choose inkjet printer.
9. Tranparent label sensor is for optional,
10. Can be customized according to your requirement,
11. Other match equipment: Automatic Cream Filling Machine, Automatic Capping Machine.
12. Powerful function, one machine can realize 4 products labeling(square, round, flat and dysmorphic bottle).
Product Parameters:
| No. | Item | Description |
| 1 | Label roll inner diameter | 76mm(customized) |
| 2 | Max Label roll outer diameter | 370mm(customized) |
| 3 | Label Height | 10-190mm(optional) |
| 4 | Labeling speed | 36/min(adjustable) |
| 5 | Material | Stainless steel 316&304 |
| 6 | Automatic Grade | Automatic |
| 7 | Driven type | Electric |
| 8 | Power Supply | 380V,50/60HZ,3000W |
Product advantages:

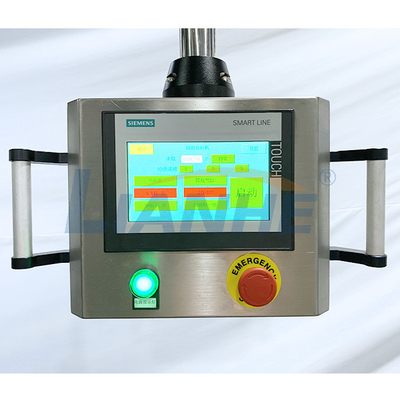

The touch screen control panel makes the working data visual,it is more convenient to adjust and test machine for new hands.Different kinds of language can be customized according to operation need.
This machine is good for labeling stickers on flat bottles and round bottles each labeling head can be controlled separately,operator can choose the suitable one when labeling different kinds of products.
This structure is designed for press label stickers after double side labeling on round bottle.It can ensure there is no bubble under label stickers for curved surface labeling,improves labeling effect.

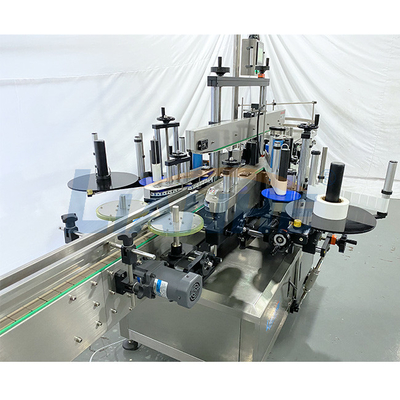

This machines is designed with bottle separating wheels and bottle guiding structure,these two parts can help to make bottles be in order before labeling ensures production quality.
The labeling structure can be adjusted in different directions by adjusting the rotary knob,makes the sticker can be labeled better.
Designed with label sensor,it can be used to detect label stickers accurately and control the machine to output label stickers,prevent from overusing label stickers.
Product details:
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
