ISO 1000L Cream Stainless Steel Storage Tank Anti Leaking Practical
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-ST |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Cash |
| Supply Ability: | 60 Sets per Month |
|
Detail Information |
|||
| Material: | Stainless Steel 304 / 316L | Funtion: | Cosmetic / Food / Daily Chemical |
|---|---|---|---|
| Additional Function: | Heating / Cooling / Mixing | Dimension(L*W*H): | Customized |
| Video Outgoing-inspection: | Provided | Key Selling Points: | Sanitary Food Grade |
| High Light: | ISO Stainless Steel Storage Tank,1000L Stainless Steel Storage Tank,Anti leaking Cream Storage Tank |
||
Product Description

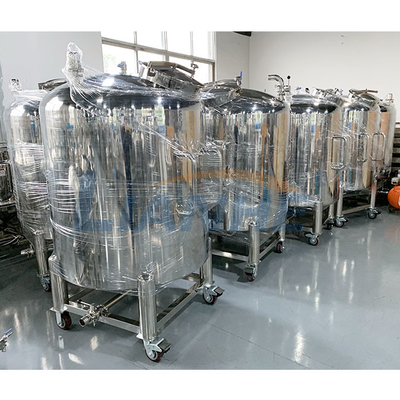

1000 Liter Stainless Steel Liquid Soap Lotion Cream Storage Tank
Product Description:
The storage capacity of the storage tanks produced by PMK Machinery can reach up to 20000L, and 100-15000L storage tanks can also be customized according to their own needs. The storage tanks are made of SUS316L or 304 stainless steel, which has good thermal insulation performance. The attached configuration is as follows: import and export Feed port, manhole, thermometer, fly-proof, dust-proof breathing hole, CIP cleaning sprinkler
Product Feature:
1. Cylinder material: stainless steel 304 or 316L;
2. Design pressure: 0.35Mpa;
3. Working pressure: 0.25MPa;
4. Cylinder specifications: refer to technical parameters;
5. Mirror polished inner and outer surfaces, Ra<0.4um;
6. Other requirements: according to the design drawings.
Product Application:
Stainless Steel Chemical Perfume/Alcohol/Floral Water Storing Tank has below Usage:
Used as liquid storage tank, mixing tank, buffer tank and water storage tank etc.
1. All materials are sanitary stainless steels.
2. Humanized structure design and easy to operate.
3. Transition area of interior wall on tank adopts arc transition to ensure that no dead ends of sanitation.
4.The storage tanks capacity are 100L, 150L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 4000L, 5000L, 10T, etc. It’s suggested to put outside material be SUS316L
Working Principle:
1. The types of storage tanks include vertical and horizontal; single-wall, double-wall and three-wall insulation storage tanks, etc.
2. It has reasonable design, advanced technology, automatic control, and meets the requirements of GMP standards. The tank adopts vertical or horizontal, single-wall or double-wall structure, and can be added with insulation materials as required.
3. Normally the storage capacity is 50-15000L. If the storage capacity is more than 20000L, it is recommended to use an outdoor storage tank, and the material is high-quality stainless steel SUS304.
4. The storage tank has good thermal insulation performance. The optional accessories and ports for the tank include: agitator, CIP spray ball, manhole, thermometer port, level gauge, aseptic respirator port, sampling port, feed port, discharge port, etc.
Product Parameters:
| working voume | 50L-5000L |
| Material | SUS304 or SUS316L |
| Mirror polishing | Internal and external sanitation mirror polishing≥330 mesh |
| Lid | Open lid or sealed lid |
| Bottom | Four wheels |
| Discharge | Bottom ball valve to discharge |
Type Option:
1. Movable Open Lid Storage Tank
2. Movable Sealed Lid Storage Tank
3. Movable Pressure Storage Tank
4. Movable Heating Sealed Storage Tank(or Open Lid)
5. Movable Mixing Storage Tank
6. Constant Temperature Storage Tank
7. Fixed Sanitary Grade Storage Tank (With Mixer)
Product Details:
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
