Stable Sanitiser Manufacturing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE, TUV, SGS, GMP |
| Model Number: | VME-C200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Bubble Film Packaging |
| Delivery Time: | 30 Working Days |
| Payment Terms: | T/T, L/C, D/A |
| Supply Ability: | 20 Sets Per Month |
|
Detail Information |
|||
| Main Tank Structure: | 3 Layers, 2 Jackets | Material: | SUS316L/SUS304/SUS304 (in/mid/out) |
|---|---|---|---|
| Design Capacity: | 250L | Working Capacity: | 200L |
| Mixing Speed: | 0-65RPM | Mixing Method: | Two Way Mixing With Wall Scraper |
| Homogenizer: | 0-3600RPM | Tank Structure: | Main Tank + Water Tank + Oil Tank |
| Vacuum System: | -0.1MPa | ||
| Highlight: | Stable Sanitiser Manufacturing Machine,65RPM Sanitiser Manufacturing Machine,Rustproof Sanitizer Making Machine For Home |
||
Product Description
200 Liter High Shear Emulsifier Mixer Cream Making With Circulation Homogenizer
Brief Introduction:

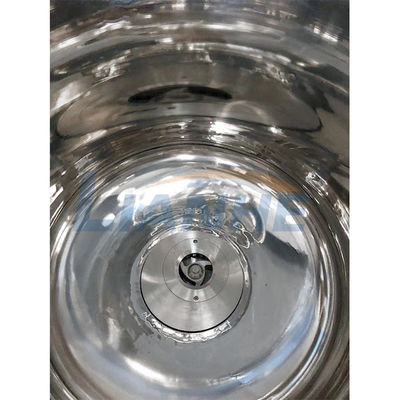

The vacuum emulsification equipment is generally made of main emulsification blender, oil phase mixer, water phase mixer, vacuum system, hydraulic lifting system, tilting system for the main emulsifying mixer, heating and cooling system, temperature control system, electrical control panel etc. The main emulsification mixer consists of a high speed rotor stator homogenizer and counter-rotating centre agitator and wall scraper. The homogenizer, centre agitator and wall scraper are all mounted from the top of the cover. The oil and water phase mixers have exactly the same construction. There’s a high speed disperser mounted from the top of the cover which helps dissolve the ingredients. Some customers will omit the oil and water phase mixers and keep the main emulsification machine only.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
Application Product:
- Skin & Hair Care: Body lotion, facial cream, sunscree cream, serum, hair dye, hair conditioner, etc.
- Cosmetic: Liquid foundation, BB cream, mascara, lipstick, concealer, lip gloss, etc.
- Pharmaceutical: Ointment, erythromycin eye ointment, Compound Dexamethasone Acetate, etc.
- Food: Mayonnaise, ketchup, cheese, sauce, paste, coconut oil, etc.
This machine is suitable for cosmetic cream, paste, mayonnaise, shampoo, syrup, etc products in cosmetic, food, beverage, chemical, daily chemical, beverage, pharmaceutical, medical, etc industries. If customers have any doubt on the machine, or if you are not sure whether this machine is suitable for your products or not, please send us inquiry and we will get back to you very soon.
Machine Details:
The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system (optional), electric control system (PLC is optional), operation platform, etc.
