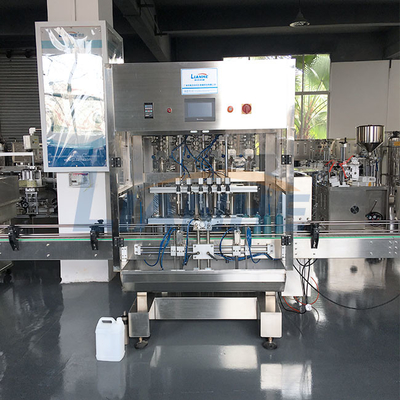

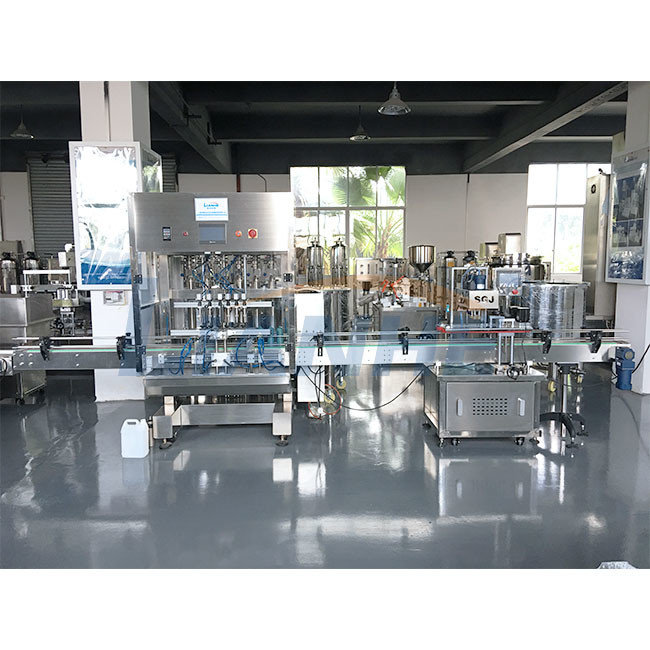

Automatic Detergent Filling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Voltage: | According To Customer | Application: | Cosmetic, Daily Chemical, Food, Pharmaceutical |
|---|---|---|---|
| Filling Volume: | 5-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | Filling Nozzle: | 1, 2, 4, 6, 8, 10, 12 Nozzles |
| Filling Speed: | 30-60 Bottles/min | Material: | SUS 304/316L |
| Control: | PLC + Touch Screen | Filling Method: | Servo Motor + Piston Filling |
| High Light: | Automatic Detergent Filling Machine,Piston Detergent Filling Machine,Single Phase Piston Bottle Filler |
||
Product Description
High Viscosity Liquid Filling Machine Cosmetic Cream Lotion Gel Paste Filler
Product Description:
This machine is suitable for all kinds of viscous, non-viscous and corrosive liquids etc. It is widely used in plant oils, engine oils, chemical liquids, daily chemical liquids etc. This equipment is mechatronics. It is very convenient to replace bottle samples or liquids. unique design and superior performance. It meets all requirements of customers. Siemens PLC control system, with control protection function, vacuum leak-proof device, to ensure no leaking situation during production, electric adjusting for volume system, frequency conversion control and photoelectric control.
Product Parameters:
Automatic Filling machine is controlled by computer via an auxiliary device (such as a cylinder block bottle system, stop bottles system, lifting system, feeding control, counting devices, etc.) to complete the automatic filling in the absence of personal operating conditions.
| Filling Nozzle | 1 Nozzle | 2 Nozzle | 4 Nozzle | 6 Nozzle | 8 Nozzle | 10 Nozzle | 12 Nozzle |
| Filling Speed | 20 bot/min | 25 bot/min | 30 bot/min | 40 bot/min | 50 bot/min | 60 bot/min | 70 bot/min |
| Filling Volume | 10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | ||||||
| Filling Accuracy | ±0.5-1% | ||||||
| Power Voltage | 220V/380V/410V/440V, 60Hz, 3 Phase | ||||||
| Air Consumption | 0.5-0.7Mpa | ||||||
| Remark |
1. The filling speed based on 500ml/bottle water.
2. More options can be customized according to your requirements.
|
||||||
Product Features:
- This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.
- Accurate measurement: adopt servo control system, ensure the piston can always reaches constant position.
- When close to target filling capacity can be applied to realize speed slow filling, prevent the liquid spill bottle mouth cause pollution.
- Convenient adjustment: replacement filling specifications only in touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment.
- The use of internatioal famouse brand electrical components, performance and stability.
- User can adjust filling range, the materials is not enough in hopper, the computer will give the feeding pump signal to
addmaterial by level sensor. When the material is full, the pump will stop automatically.
- Machine body is made by 304 stainless steel, easy to clean, machine is full compliance with GMP requirements.
- Peristaltic pump or piston pump filling system, measuring precision, convenient manipulation.
Product Details:

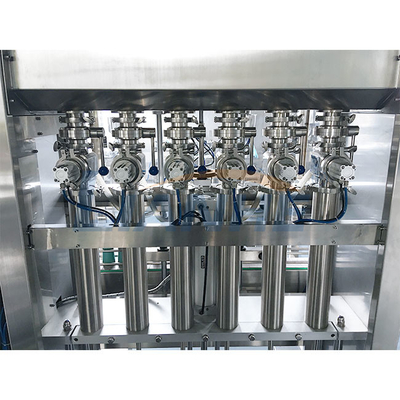

1. Filling Nozzles: 1/2/4/6/8/10/12 Customizable no-drop filling nozzles. Different sizes to fit different bottles, easy to be assembled.All the material contact part is made of stainless steel 316L.
2. Various Filling Range: 10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml. With adjustable speed conveyor belt, and high strength stainless steel frame, firm and wear-used.
3. Servo Piston Motor: Servo motor control filling, higher filling accuracy and more stable performance.
4. PLC Control System: PLC touch screen control system, high class appearance, easier and faster for operation.
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte.
