Stainless Steel Cream Lotion Filling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-AF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Filling Nozzle: | 1, 2, 4, 6, 8, 10, 12 Nozzles | Filling Speed: | 30-60 Bottles/min |
|---|---|---|---|
| Filling Volume: | 5-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | Material Contact Part: | SUS316L, Te-flon |
| Control: | PLC + Touch Screen | Filling Method: | Servo Motor + Piston Filling |
| Highlight: | Stainless Steel Cream Lotion Filling Machine,ISO Cream Lotion Filling Machine,Rustproof Semi Automatic Cream Filling Machine |
||
Product Description

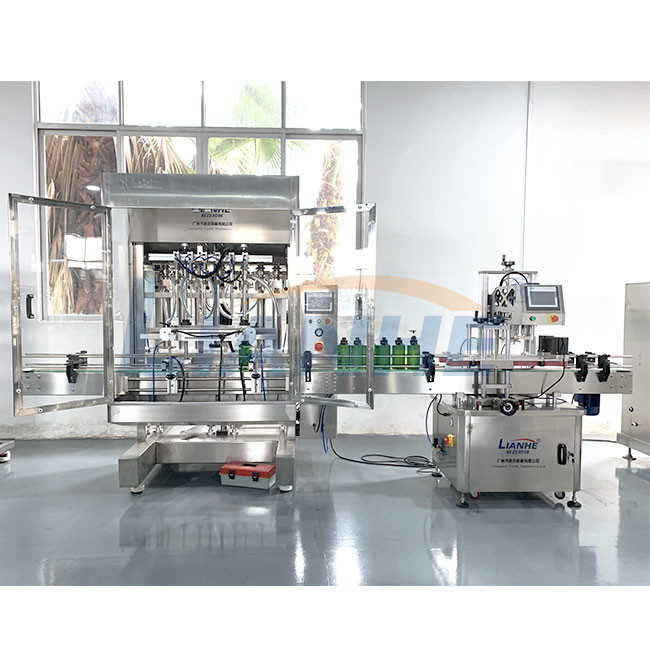

Automatic Servo Piston Liquid Filling Machine Lotion Cream Bottle Jar Filling
Product Description:
This machine is suitable for the filling operation of various shampoos, conditioners, laundry detergents, detergents and other viscous materials. Because the materials are relatively viscous, the machine adopts piston pressure filling method, and the piston drive adopts motor drive. The filling head lifting also adopts the motor lifting method, which adopts the microcomputer PLC control, and the loading adjustment is convenient. It only needs to be operated on the touch screen, and can be completed with one button, which is easy and fast;The filling precision of the machine is high, the operation is stable, and the maintenance is maintained.Easy to clean;It is an ideal choice for daily chemical manufacturers.
Product Parameters:
Automatic Filling machine is controlled by computer via an auxiliary device (such as a cylinder block bottle system, stop bottles system, lifting system, feeding control, counting devices, etc.) to complete the automatic filling in the absence of personal operating conditions.
| Filling Nozzle | 1 Nozzle | 2 Nozzle | 4 Nozzle | 6 Nozzle | 8 Nozzle | 10 Nozzle | 12 Nozzle |
| Filling Speed | 20 bot/min | 25 bot/min | 30 bot/min | 40 bot/min | 50 bot/min | 60 bot/min | 70 bot/min |
| Filling Volume | 10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml | ||||||
| Filling Accuracy | ±0.5-1% | ||||||
| Power Voltage | 220V/380V/410V/440V, 60Hz, 3 Phase | ||||||
| Air Consumption | 0.5-0.7Mpa | ||||||
| Remark |
1. The filling speed based on 500ml/bottle water.
2. More options can be customized according to your requirements.
|
||||||
Product Features:
1. The material is driven by the servo to drive the piston to extract the material into the metering cylinder, and then the servo pushes the piston into the container through the material tube.
2. With no bottle and no filling function, the liquid level of the storage hopper automatically controls the feeding.
3. The overall program control adopts PLC + touch screen, and the filling volume and filling speed can be adjusted conveniently and quickly.
4. The overall machine material mainly uses stainless steel 304 material, imported acrylic, food-grade PVC and other materials.
5. The equipment has strong compatibility, and can quickly adjust and replace bottles of different shapes and specifications without replacing parts, which can meet the production requirements of multiple varieties and specifications.
Product Details:

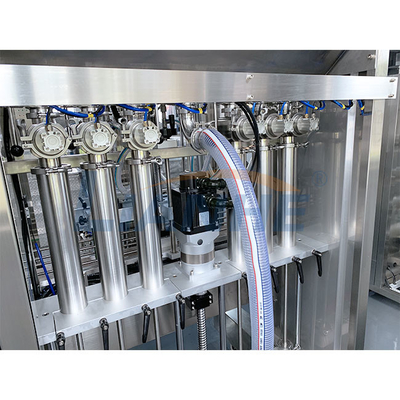

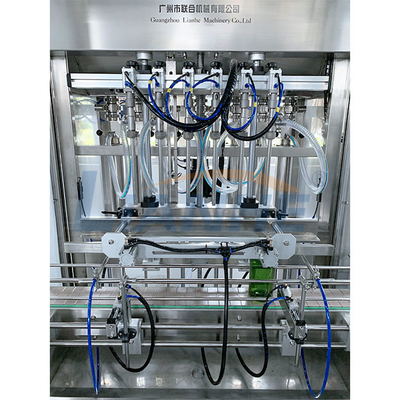

1. Filling Nozzles
2. Various Filling Range Optional
3. Servo Piston Motor
4. PLC Control System
After-sales service:
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you needto change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.
