100L Ointment Making Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Model Number: | LH-VME50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Normally packaged in wooden case or wrapping film, also can be customized |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, L/C, D/A |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 5L - 5000L | Material: | SUS304, SUS316L |
|---|---|---|---|
| Voltage: | Long Service Life | Mixing Speed: | 0-65 Rpm |
| Homogenizing Speed: | 0-3600 Rpm | Applicable Industries: | Cosmetic, Pharmaceutical, Food |
| Highlight: | 100L Ointment Making Machine,PLC Ointment Making Machine,Fixed Cosmetic Processing Equipment |
||
Product Description
Cosmetic Cream Lotion Paste Vacuum Emulsifier Mixer PLC Control System
Product Description:

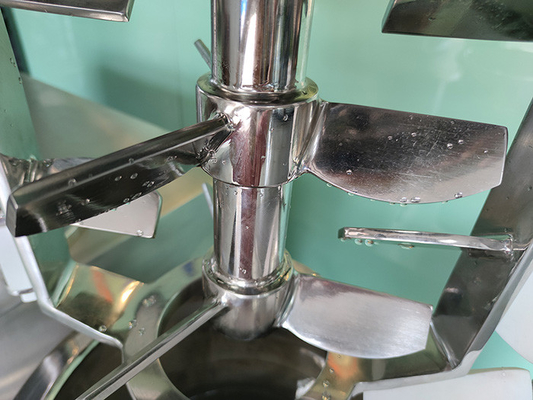

The vacuum emulsifier homogenizer machine is composed of mixing, homogenizing, dispersing, emulsifying and Plc or button control system and also be used with oil, water phase, vacuum, heating/cooling system, ect. Materials go through the upper tank stirring, PTFE scraper will sweep the wall sticky materials, and then after the blades and rotary blades cut, compressed, The materials is cut in the high shear condition, due to the emulsification tank in a vacuum condition, the bubbles generated in the mixing process is promptly removed.
Product Composition:

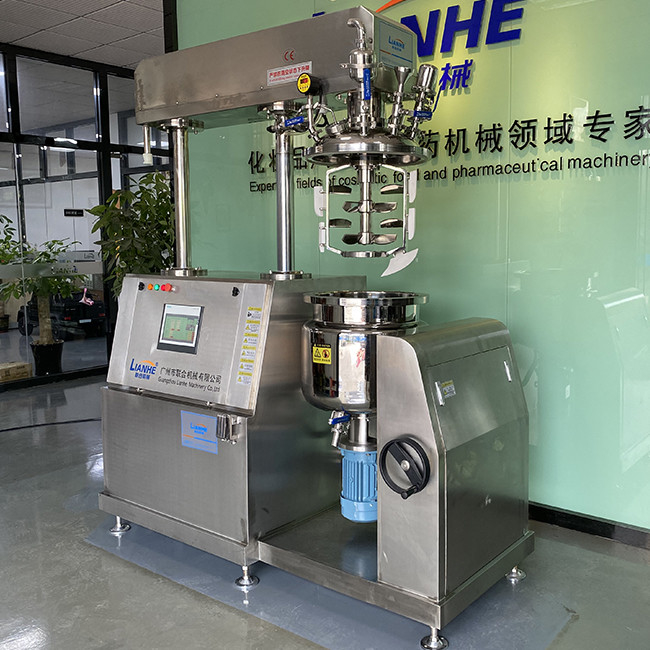

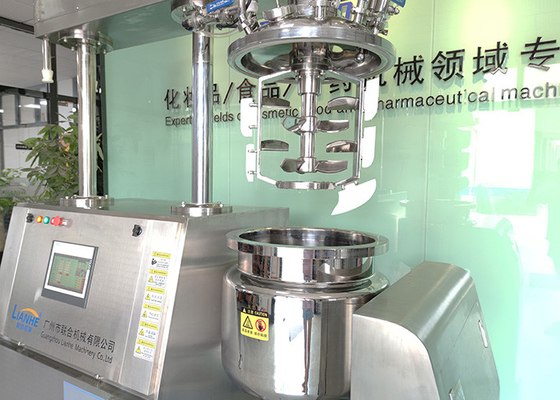

The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system (optional), electric control system (PLC is optional), operation platform, etc.
Product parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||
Product Features:
1. Stainless Steel Operating Platform. Contact Part Material:SUS316L Stainless Steel. Outside Part:SUS304 Stainless Steel. Mirror-polished tanks and pipes. Meeting GMP standards.
2. The whole machine has a reliable sealing (using German Bergman mechanical seal, Japanese NSK rolling bearing). Electrical components are purchased from well-known foreign companies.
3. Higher Homogenization Efficiency & Better Product Applicability: The multiple-layer shear structure and unique grinding process fully ensure the fine material emulsification.
4. Using advanced frequency converter to control the mixing speed to meet different production needs.
5. The entire process is carried out under vacuum conditions to prevent the material from generating bubbles after high-speed stirring. It can meet the requirements of sanitation and sterility.
6. The tank can be designed to heat or cool materials, according to production requirements.
7. Advanced PLC control system can be used to fully control the addition of materials, control the speed and time of mixing and homogenization. It can print the above data (optional).
Product Advantage:
The vacuum emulsifying mixer machine produces cream and lotion with a fine, smooth, glossy form and a highly stable essential material. During the production process, operators must have a wide range of skills and abilities to produce the best cream. The classic way of making cream is to heat the oil and water at a temperature, mixing, packing materials, emulsifying, and cooling. On the other hand, the vacuum emulsifying mixer machine's cream is bubble-free, supple, smooth, and has a long life shelf.
Our Service:
As the vacuum emulsifying mixers manufacturer, we customize machines to meet customer needs. We can send our skilled engineers to the customer’s factory to install the machine correctly. We also provide a one-year warranty for all our machines and after-sales service.
